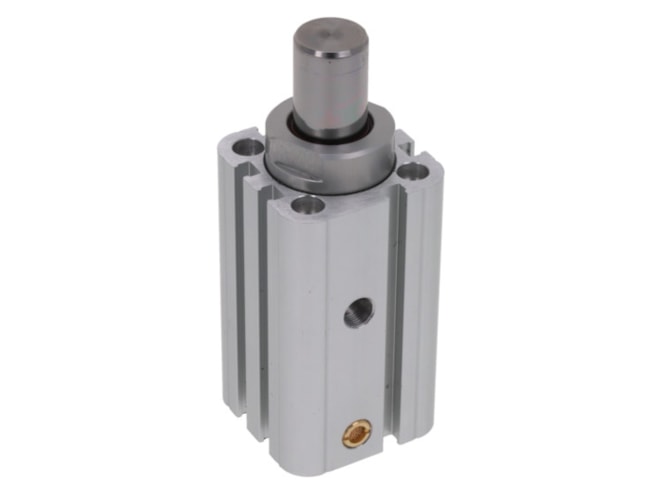

Aventics CCI-SA-050-25-ST-TR Pneumatic Linear Actuator

multi-position cylinder, Compact cylinder, Piston rod cylinders, Standard cylinders. View other configurations.

$206.05
Part Numbers
  • CCI-SA-050-25-ST-TR
  • R452000639
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Features: Axle pivot version
  • Cylinder Function: Single-acting, extended without pressure
  • Force max.: 82 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1237 N
  • Piston force retracting: 730 N
  • Stroke Length: 25 mm
View other configurations.
AVENTICS Compact cylinder, Series CCI-SC R452000639
