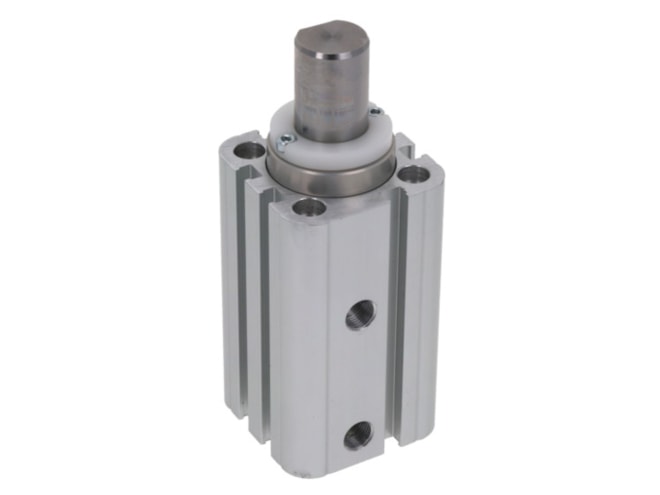

Aventics CCI-DS-032-20-ST-NR Pneumatic Linear Actuator

Standard cylinders, Compact cylinder, multi-position cylinder, Piston rod cylinders. View other configurations.

$163.38
Part Numbers
  • CCI-DS-032-20-ST-NR
  • R452000667
Highlights...

Features

  • Bore Size: 32 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Features: Axle pivot version, non-rotating
  • Cylinder Function: double-acting with spring return, extended without pressure
  • Force max.: 35 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 507 N
  • Piston force retracting: 309 N
  • Stroke Length: 20 mm
View other configurations.
AVENTICS Compact cylinder, Series CCI-SC R452000667
