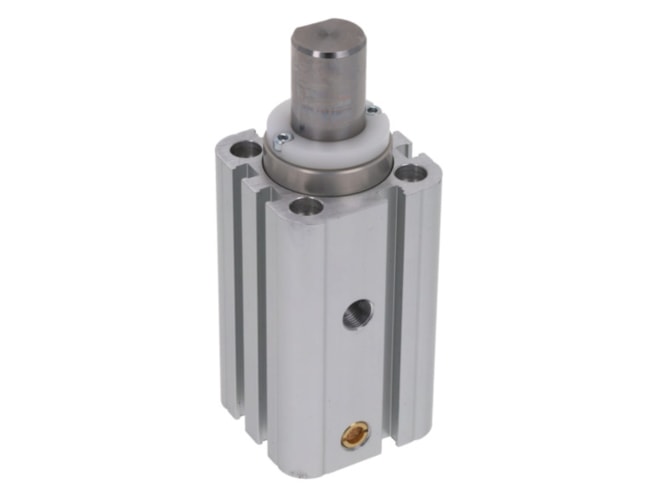

Aventics CCI-SA-050-20-ST-NR-INCH Pneumatic Linear Actuator

Compact cylinder, Standard cylinders, multi-position cylinder, Piston rod cylinders. View other configurations.

$239.47
Part Numbers
  • CCI-SA-050-20-ST-NR-INCH
  • R452000757
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: 1/8 NPT
  • Cushioning: Elastic cushioning
  • Cylinder Features: Axle pivot version, non-rotating
  • Cylinder Function: Single-acting, extended without pressure
  • Force max.: 82 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1237 N
  • Piston force retracting: 730 N
  • Stroke Length: 20 mm
View other configurations.
AVENTICS Compact cylinder, Series CCI-SC R452000757
