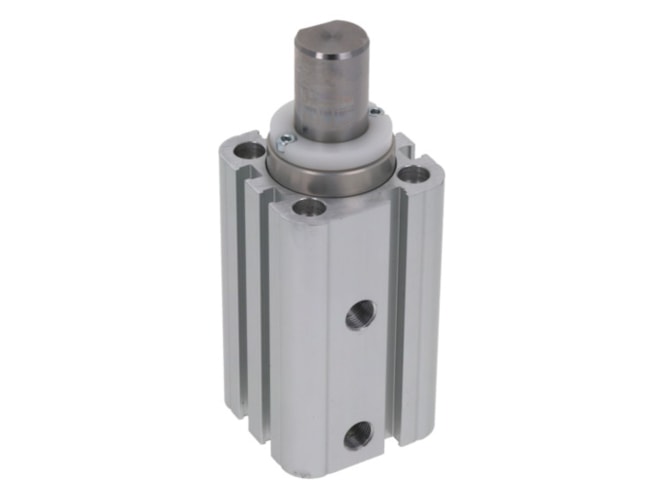

Aventics CCI-DS-032-25-ST-NR-INCH Pneumatic Linear Actuator

Piston rod cylinders, Compact cylinder, Standard cylinders, multi-position cylinder. View other configurations.

$165.66
Part Numbers
  • CCI-DS-032-25-ST-NR-INCH
  • R452000790
Highlights...

Features

  • Bore Size: 32 mm
  • Compressed air connection: 1/8 NPT
  • Cushioning: Elastic cushioning
  • Cylinder Features: Axle pivot version, non-rotating
  • Cylinder Function: double-acting with spring return, extended without pressure
  • Force max.: 35 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 507 N
  • Piston force retracting: 309 N
  • Stroke Length: 25 mm
View other configurations.
AVENTICS Compact cylinder, Series CCI-SC R452000790
