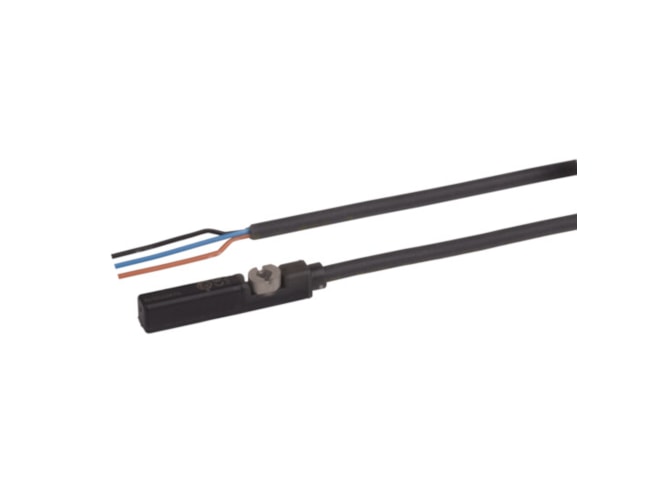

Aventics ST6-NP-K03U-030 Proximity Sensor

Proximity sensor, ATEX, Heat resistant, -30 °C cold-resistant, 6 mm T-slot. View other configurations.

$52.03
Part Numbers
  • ST6-NP-K03U-030
  • R412022849
Highlights...

Features

  • Cable Length: 3 m
  • Certifications: CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
  • Cylinder series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
  • Electrical Connection Type 2: open cable ends
  • Hysteresis: ≥ 0,2 mT
  • Industry: Industrial
  • LED color: Yellow
  • Number of Poles 2: 3-pin
  • Output Signal: NPN
  • Protection: short circuit resistant, Protected against polarity reversal
  • Protection class: IP65, IP67, IP69K
  • Slot width: 6 mm T-slot
  • Supply voltage DC max.: 30 V DC
  • Dimension: 8.66x5.91x0.16 (inches)
View other configurations.
AVENTICS Sensor, Series ST6 R412022849
