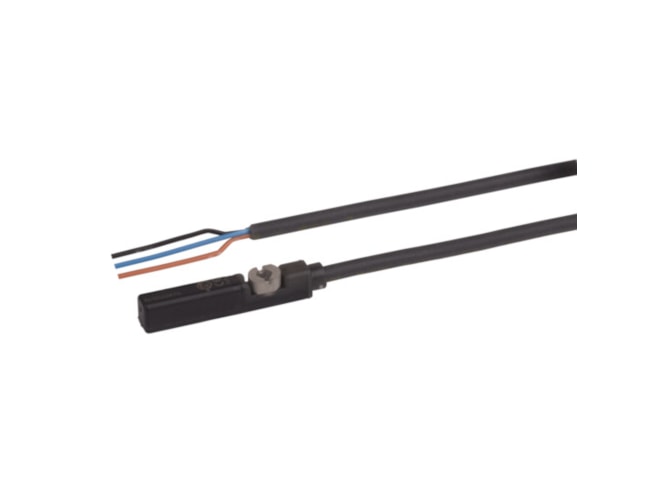

Aventics ST6-PN-K05U-030 Proximity Sensor

ATEX, -30 °C cold-resistant, 6 mm T-slot, Heat resistant, Proximity sensor. View other configurations.

$52.90
Part Numbers
  • ST6-PN-K05U-030
  • R412022855
Highlights...

Features

  • Cable Length: 5 m
  • Certifications: CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
  • Cylinder series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
  • Electrical Connection Type 2: open cable ends
  • Hysteresis: ≥ 0,2 mT
  • Industry: Industrial
  • LED color: Yellow
  • Number of Poles 2: 3-pin
  • Output Signal: electronic PNP
  • Protection: short circuit resistant, Protected against polarity reversal
  • Protection class: IP65, IP67, IP69K
  • Slot width: 6 mm T-slot
  • Supply voltage DC max.: 30 V DC
  • Dimension: 5.51x5.51x0.79 (inches)
View other configurations.
AVENTICS Sensor, Series ST6 R412022855
