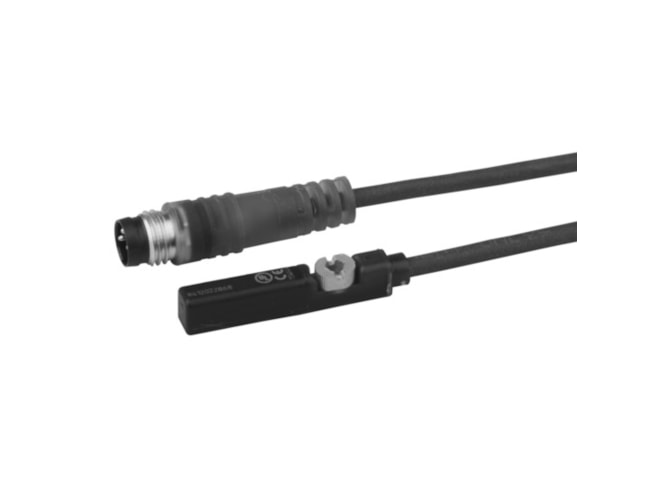

Aventics ST6-PN-M08R-030 Proximity Sensor

Features

• Cable Length: 0.3 m
• Certifications: CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
• Cylinder series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
• Electrical Connection 2: M8x1
• Electrical Connection Type 2: Plug
• Hysteresis: ≥ 0,2 mT
• Industry: Industrial
• LED color: Yellow
• Number of Poles 2: 3-pin
• Output Signal: electronic PNP
• Protection: short circuit resistant, Protected against polarity reversal
• Protection class: IP65, IP67
• Slot width: 6 mm T-slot
• Supply voltage DC max.: 30 V DC
• Dimension: 8.66x5.91x0.20 (inches)
