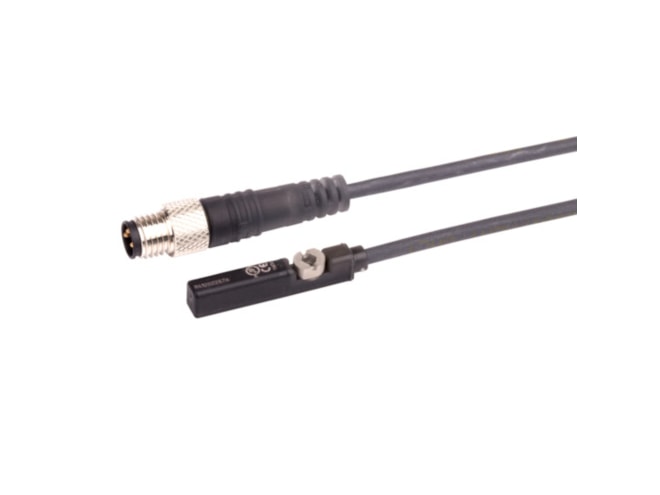

Aventics ST6-PN-M08T-030 ATEX 3GD Proximity Sensor

ATEX, Heat resistant, 6 mm T-slot, Proximity sensor, -30 °C cold-resistant. View other configurations.

$53.27
Part Numbers
  • ST6-PN-M08T-030 ATEX 3GD
  • R412022860
Highlights...

Features

  • Cable Length: 0.3 m
  • Certifications: ATEX, CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
  • Cylinder series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
  • Electrical Connection 2: M8x1
  • Electrical Connection Type 2: Plug
  • Industry: Industrial
  • LED color: Yellow, Yellow
  • Number of Poles 2: 3-pin
  • Output Signal: PNP
  • Protection: short circuit resistant, Protected against polarity reversal
  • Protection class: IP65, IP67
  • Slot width: 6 mm T-slot
  • Supply voltage DC max.: 30 V DC
  • Dimension: 0.79x0.39x0.20 (inches)
View other configurations.
AVENTICS Sensor, Series ST6 R412022860
