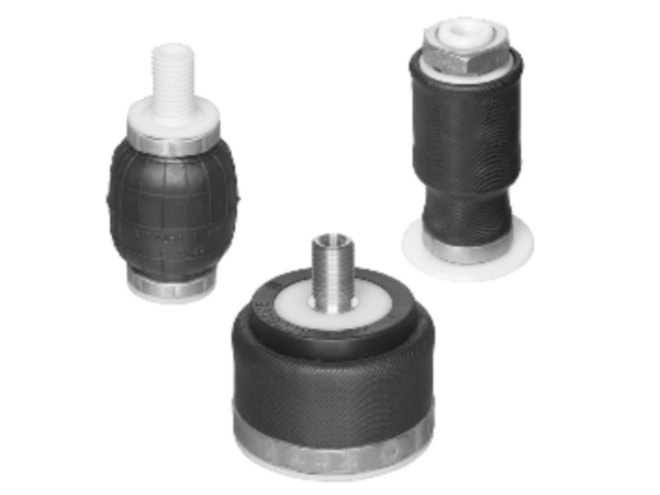

Aventics BRB-SB-088-062-0CR-PA-G018 Pneumatic Linear Actuator

Bellow actuator, Flexible rolling bellow. View other configurations.

Call for pricing
Part Numbers
  • BRB-SB-088-062-0CR-PA-G018
  • 2999300100
Highlights...

Features

  • Bellow Cylinder type: Flexible rolling bellow
  • Compressed air connection: G 1/8
  • Cylinder Function: Single-acting, retracted without pressure
  • Force max.: 2300 N
  • Force min.: 1610 N
  • Industry: Industrial
  • Installation height max.: 38 mm
  • Installation height min.: 100 mm
  • Material bellow: Chloroprene rubber
  • Material Frontcover: Polyamide fiber-glass reinforced
  • Max Working Pressure: 8 bar
  • Dimension: 3.94x3.15x3.15 (inches)
View other configurations.
AVENTICS Rolling bellow, series BRB 2999300100
