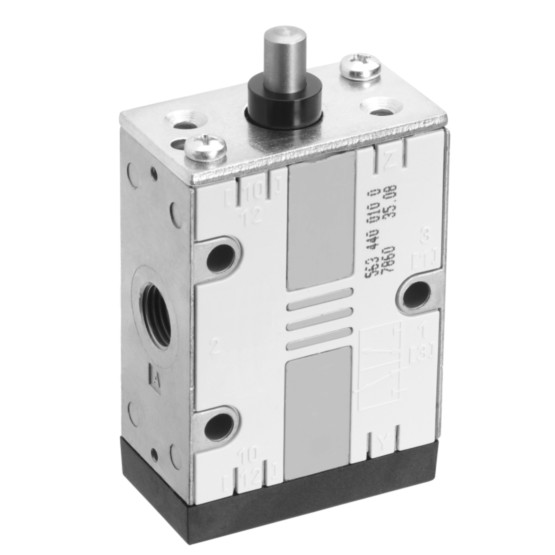

Aventics CD07-3/2NC-DO-P-G014-G014-S Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve. View other configurations.

Call for pricing
Part Numbers
  • CD07-3/2NC-DO-P-G014-G014-S
  • 5634409010
Highlights...

Features

  • Activation: Mechanical
  • Actuating element: Plunger
  • Certifications: Suitable for ATEX
  • Compressed air connection: G 1/4
  • Compressed air exhaust: G 1/4
  • Flow L M: 1400 l/min
  • Housing Material: Die cast zinc
  • Industry: Industrial
  • Max Working Pressure: 10 bar
  • Min Working Pressure: -0.95 bar
  • Scale size: CD07
  • Seat Seal Type: Soft seal

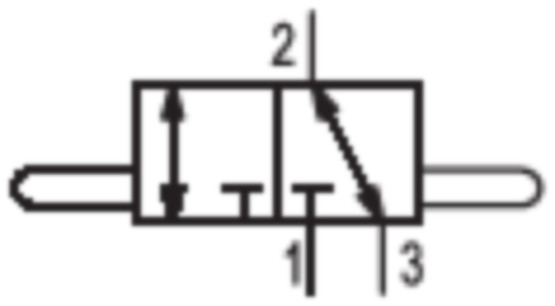

  • Switching principle: 3/2, double solenoid
  • Valve Function: NC/NO
  • Dimension: 4.17x2.17x1.18 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series CD07 5634409010
