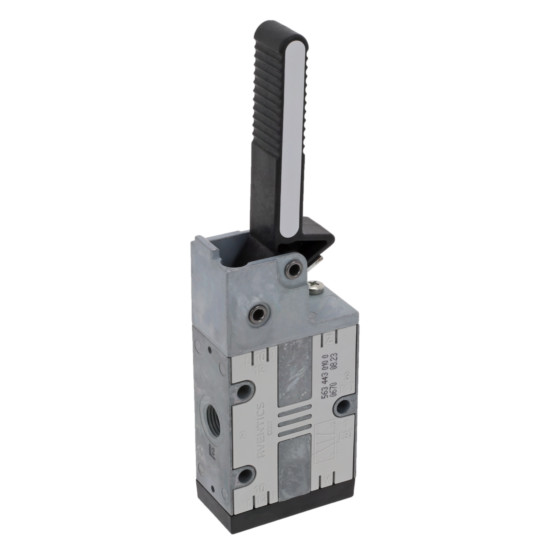

Aventics CD07-3/2NC-SR-HLX-G014-G014-S Electric and Pneumatic Actuated Directional Valve

Spool valve, Single valve. View other configurations.

Call for pricing
Part Numbers
  • CD07-3/2NC-SR-HLX-G014-G014-S
  • 5634430100
Highlights...

Features

  • Activation: Mechanical
  • Actuating element: Hand lever, with detent, without detent
  • Certifications: Suitable for ATEX
  • Compressed air connection: G 1/4
  • Compressed air exhaust: G 1/4
  • Flow L M: 1400 l/min
  • Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Max Working Pressure: 10 bar
  • Min Working Pressure: -0.95 bar
  • Scale size: CD07
  • Seat Seal Type: Soft seal

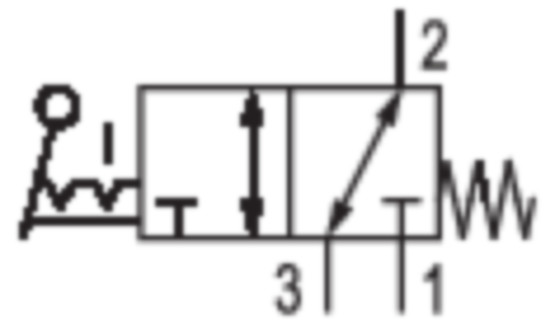

  • Switching principle: 3/2, with spring return
  • Valve Function: NC/NO
  • Dimension: 6.30x2.48x1.69 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series CD07 5634430100
