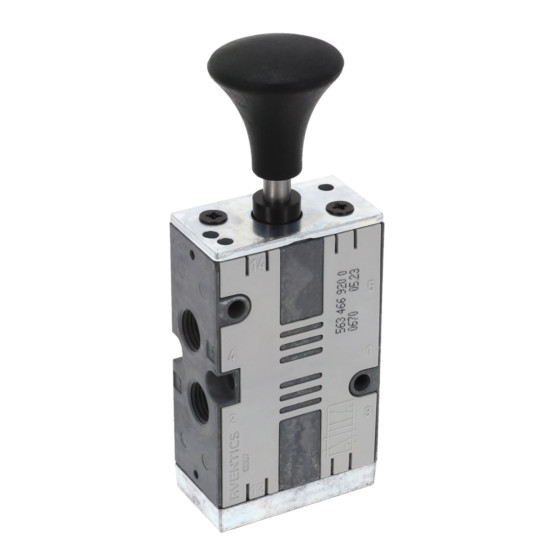

Aventics CD07-1/4-KNOB-OPERATOR Electric and Pneumatic Actuated Directional Valve

View other configurations.

$111.04
Part Numbers
  • CD07-1/4-KNOB-OPERATOR
  • R432016622
Highlights...

Features

  • Activation: Mechanical
  • Actuating element: Button
  • Compressed air connection: 1/4 NPT
  • Compressed air exhaust: 1/4 NPT
  • Flow L M: 1200 l/min
  • Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Max Working Pressure: 10 bar
  • Min Working Pressure: -0.95 bar
  • Scale size: CD07 - inch
  • Seat Seal Type: Soft seal

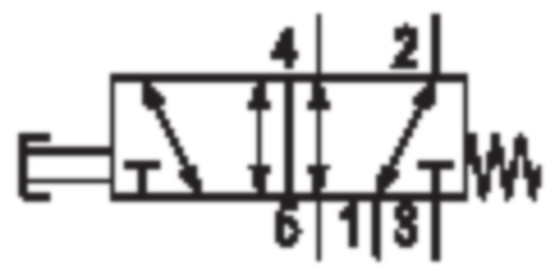

  • Switching principle: 5/2, with spring return
  • Dimension: 7.48x3.94x2.17 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series CD07 R432016622
