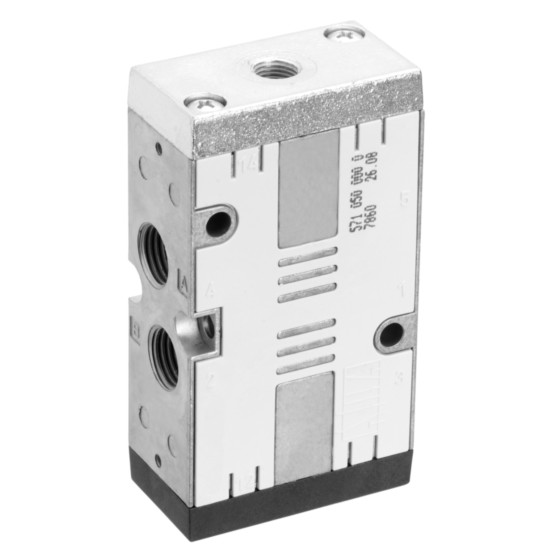

Aventics CD07-5/2XX-DO-M014-M014-M010-S Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve. View other configurations.

Call for pricing
Part Numbers
  • CD07-5/2XX-DO-M014-M014-M010-S
  • 5710501000
Highlights...

Features

  • Activation: Pneumatically
  • Certifications: Suitable for ATEX
  • Compressed air connection: M14x1,5
  • Compressed air exhaust: M14x1,5
  • Flow L M: 1200 l/min
  • Housing Material: Die cast zinc
  • Industry: Industrial
  • Max Working Pressure: 10 bar
  • Min Working Pressure: -0.95 bar
  • Scale size: CD07
  • Seat Seal Type: Soft seal

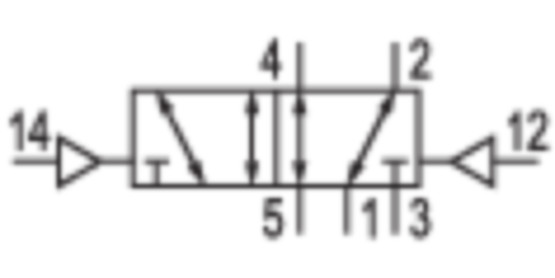

  • Switching principle: 5/2, double solenoid
  • Dimension: 3.98x1.18x2.17 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series CD07 5710501000
