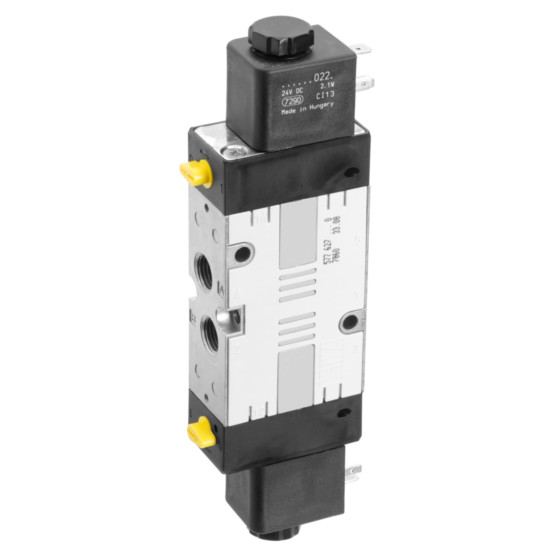

Aventics CD07-DS-240VAC Electric and Pneumatic Actuated Directional Valve

inch, Spool valve, imperial, Single valve. View other configurations.

$180.82
Part Numbers
  • CD07-DS-240VAC
  • R432016589
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 13, 14
  • Compressed air connection: 1/4 NPT
  • Compressed air connection output: 1/4 NPT
  • Electrical Connection 2: EN 175301-803, form A
  • Flow L M: 1200 l/min
  • Housing Material: Polyamide fiber-glass reinforced, Die cast zinc
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 2 bar
  • Scale size: CD07 - inch
  • Seat Seal Type: Soft seal

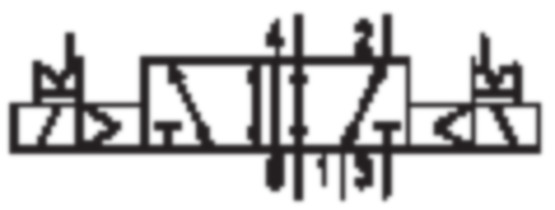

  • Switching principle: 5/2, double solenoid
  • Valve Pilot: Internal
View other configurations.
AVENTICS 5/2-directional valve, Series CD07 R432016589
