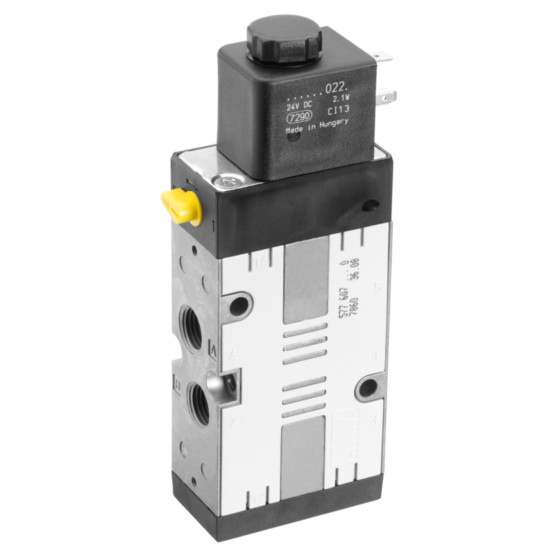

Aventics CD07-5/2SR-24VDC-IP-CSA/FM-STD Electric and Pneumatic Actuated Directional Valve

imperial, Spool valve, Single valve, inch. View other configurations.

$378.46
Part Numbers
  • CD07-5/2SR-24VDC-IP-CSA/FM-STD
  • R432039170
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 13, 14
  • Compressed air connection: 1/4 NPT
  • Compressed air connection output: 1/4 NPT
  • Electrical Connection 2: EN 175301-803, form A
  • Flow L M: 1200 l/min
  • Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 3 bar
  • Operating Voltage: 24 V DC
  • Scale size: CD07 - inch
  • Seat Seal Type: Soft seal
  • Switching principle: 5/2, with spring return
  • Voltage tolerance: -10% / +10%
  • Wattage: 4.2 W
View other configurations.
AVENTICS 5/2-directional valve, Series CD07 R432039170
