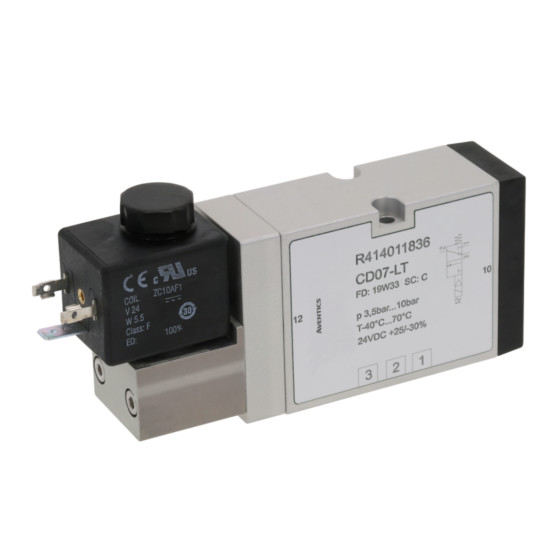

Aventics CD07-LT-3/2-NC-SR-024VDC-WMO-I-FLG-RAIL Electric and Pneumatic Actuated Directional Valve
Spool valve, Single valve. View other configurations.

- CD07-LT-3/2-NC-SR-024VDC-WMO-I-FLG-RAIL
- R414012228
- CD07-LT-3/2-NC-SR-024VDC-WMO-I-FLG-RAIL
- By Aventics
- FREE Shipping on orders of $1,000 or more
Overview
Features
- Activation: Electrically
- Compressed air connection: flange
- Electrical Connection 2: EN 175301-803, form A
- Flow L M: 1000 l/min
- Housing Material: Aluminum, anodized, Polyamide fiber-glass reinforced
- Industry: Rail
- Manual Override: with detent
- Max Working Pressure: 10 bar
- Min Working Pressure: 3 bar
- Operating Voltage: 24 V DC
- Scale size: CD07-LT
- Seat Seal Type: Soft seal

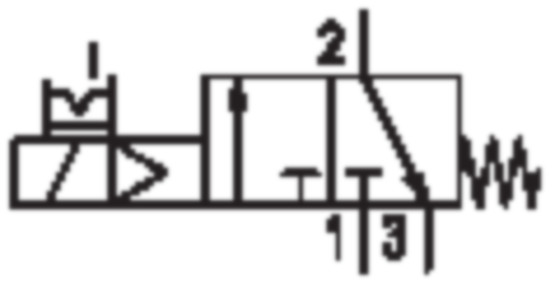

- Switching principle: 3/2, with spring return
- Valve Function: NC
- Valve Pilot: Internal
- Voltage tolerance: -30% / +25%
- Dimension: 6.30x2.76x0.79 (inches)
