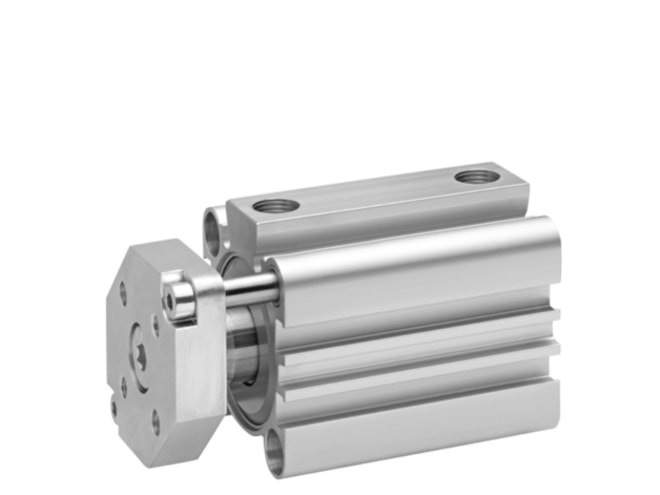

Aventics R481653549 Pneumatic Linear Actuator

Piston rod cylinders, Standard cylinders, ISO 15524, ISO cylinder, Short-stroke cylinder. View other configurations.

Call for pricing
Part Numbers
  • R481653549
  • R481653549
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: 1/4″ NPTF
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1964 N
  • Piston force retracting: 1766 N
  • Piston rod modification: non-rotating, with front plate
  • Piston rod thread type: Piston rod: internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 40 mm
View other configurations.
AVENTICS Short-stroke cylinder, Series SSI R481653549
