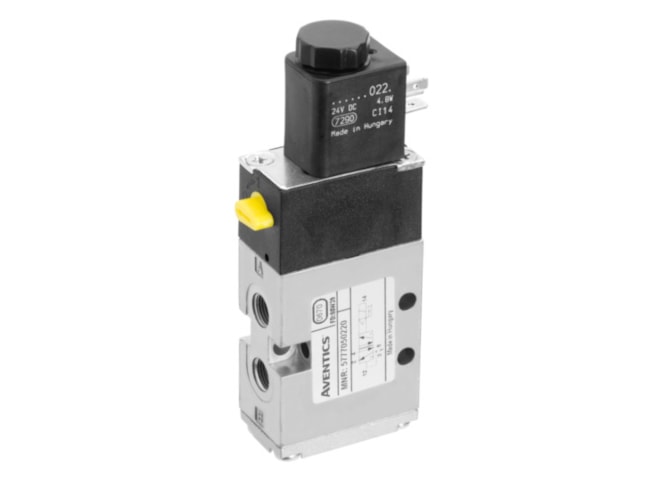

Aventics CD04-5/2XX-AR-230AC-I-M010-M010-EN175301 Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve. View other configurations.

Call for pricing
Part Numbers
  • CD04-5/2XX-AR-230AC-I-M010-M010-EN175301
  • 5777005280
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 14
  • Compressed air connection output: M10x1
  • Electrical Connection 2: EN 175301-803, form B
  • Flow L M: 900 l/min
  • Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 3 bar
  • Operating Voltage: 230 V AC
  • Seat Seal Type: Soft seal
  • Switching principle: 5/2, with spring return
  • Valve Pilot: Internal
  • Dimension: 4.92x1.97x0.98 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series CD04 5777005280
