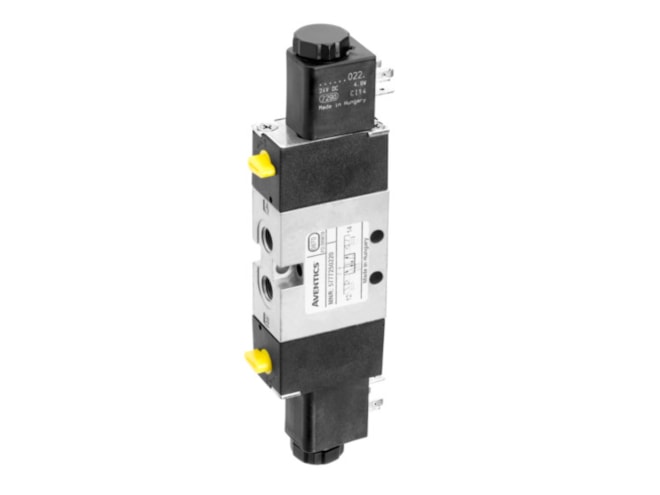

Aventics CD04-5/2XX-DO-230AC-I-G018-G018-EN175301 Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve. View other configurations.

Call for pricing
Part Numbers
  • CD04-5/2XX-DO-230AC-I-G018-G018-EN175301
  • 5777255280
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 14
  • Compressed air connection output: G 1/8
  • Electrical Connection 2: EN 175301-803, form B
  • Flow L M: 900 l/min
  • Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 2 bar
  • Operating Voltage: 230 V AC
  • Seat Seal Type: Soft seal
  • Switching principle: 5/2, double solenoid
  • Valve Pilot: Internal
  • Dimension: 7.36x2.60x2.09 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series CD04 5777255280
