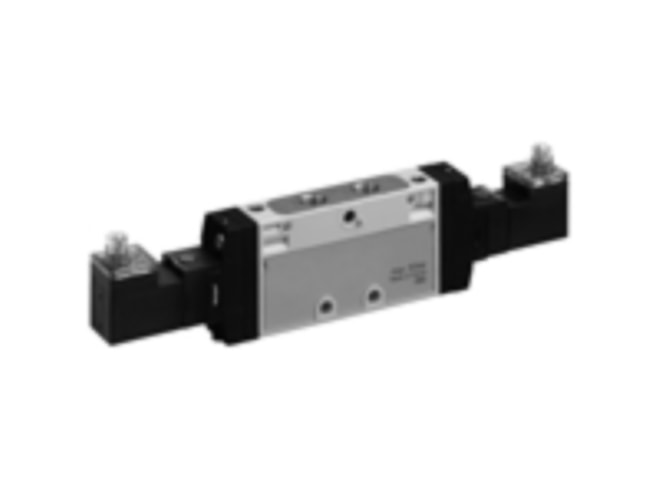

Aventics TC08-5/3EC-DO-024DC-I-M8X1_4P-SGL Electric and Pneumatic Actuated Directional Valve

Spool valve, Pipe connection, Single valve. View other configurations.

$162.88
Part Numbers
  • TC08-5/3EC-DO-024DC-I-M8X1_4P-SGL
  • 0820061311
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection output: G 1/8
  • Electrical Connection 2: M8
  • Flow L M: 700 l/min
  • Housing Material: Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: without detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 3 bar
  • Operating Voltage: 24 V DC
  • Seat Seal Type: Soft seal
  • Switching principle: 5/3, exhausted center
  • Valve Function: Exhausted Center
  • Valve Pilot: Internal
  • Voltage tolerance: -10% / +10%
  • Wattage: 2.2 W
View other configurations.
AVENTICS 5/3-directional valve, Series TC08 0820061311
