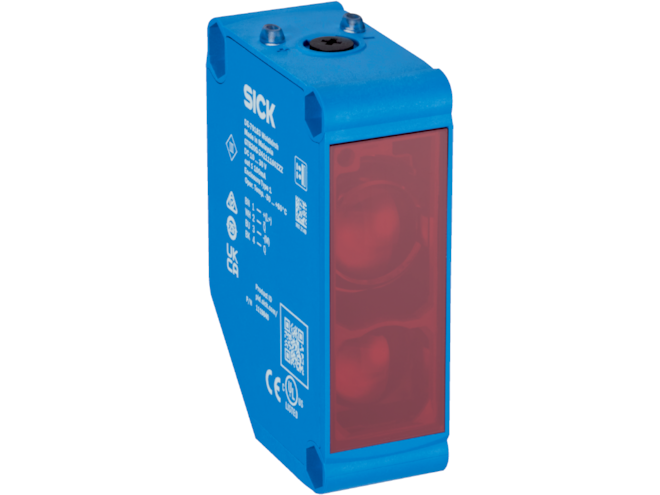

SICK G20 Series Photoelectric Sensor

Up to a 120m range, designed for dusty or dirty application locales. Front LED and rotary switches permit operational checks. Configurable sensitivity and signal delay.

This model has 51 variants.
Part Number
  • G20 Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Through-beam photoelectric sensor
    • Photoelectric retro-reflective sensor
  • Functional principle detail(s):
    • Background suppression
    • Energetic
    • Dual lens system (min. distance to reflector)
  • Light source(s): LED
  • Light type(s): red (visible), infrared
  • Sensing range(s): 0 up to 120m
  • Switching output(s): NPN/PNP, SPDT relay, solid-state relay
  • Switching mode: light/dark
  • Operating temperature: –30 to 60°C
  • Optional time delay
  • High operating reserve
  • Additional front LED for light reception status
  • Cable included with variable connection types
  • Voltage type: DC, and AC/DC
  • Enclosure rating: IP67/65
  • Adjustment: potentiometer (with select models)

The SICK G20 Series Photoelectric Sensor has three base system configurations, including proximity sensor, though-beam sensor, and retro-reflective sensor. These models operate with a LED light source, using visible red or infrared light. Each unit is equipped with light/dark switching mode, with various switching output options including SPDT relay (electrically isolated), solid-state relay, and push-pull NPN/PNP outputs. Sensing ranges can start from 0m and go up to 120m (through-beam models only). An additional LED on the front of the unit, paired with rotary switches, expands this sensor's capabilities to include commissioning and operational checks. The G20 Series has optional time delay and adjustable sensitivity, making this product family highly adaptable for various applications.
