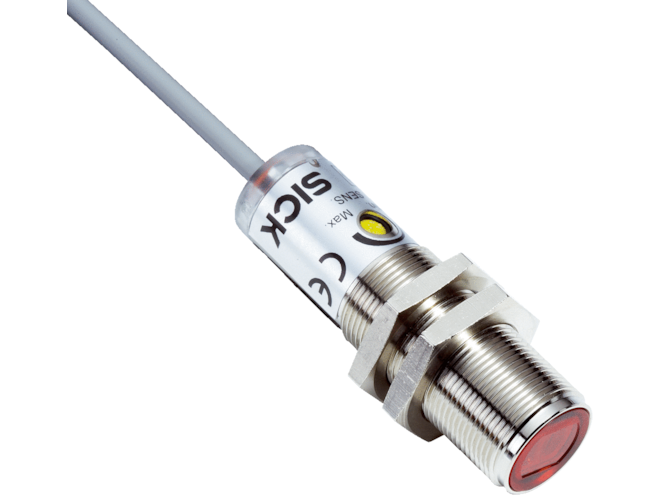

SICK V180-2 Series Photoelectric Sensor

800mm max sensing range for proximity sensors. LED status display with 360° visibility. Potentiometer adjustment, IP67 plastic or metal housing.

This model has 124 variants.
Part Number
  • V180-2 Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Photelectric retro-reflective sensor
    • Through-beam photoelectric sensor
  • Functional principle detail(s):
    • Energetic
    • With minimum distance to reflector (dual lens system)
    • Background blanking
    • Background suppression
  • Light source: LED
    • visible red, infrared
    • 360° visibility
  • Adjustment: potentiometer
  • Sensing range(s):
    • Proximity: up to 800mm
    • Retro-reflective: 6m
    • Through-beam: 20m
  • Switching mode: light, dark, light/dark
    • frequencies up to 1000Hz
  • Switching output: NPN, PNP
  • DC supply voltage
  • Plastic or metal housing (dependent on model)
    • IP67 rating

The SICK V180-2 Series Photoelectric Sensor is available in proximity, retro-reflective, and through-beam configurations. This Series offers extended sensing ranges, with max ranges of 800mm, 6m, and 20m, respectively. These economical cylindrical sensors offer quick and easy installation with alignment via LED, with IP67 rated plastic housing, or metal housing for harsher application environments. A bright, LED status display provides continuous data, with 360° visibility for streamlined troubleshooting. This product family is adaptable to a number of applications, including product detection and machine position in packaging, manufacturing automation, material handling as well as warehousing systems.
