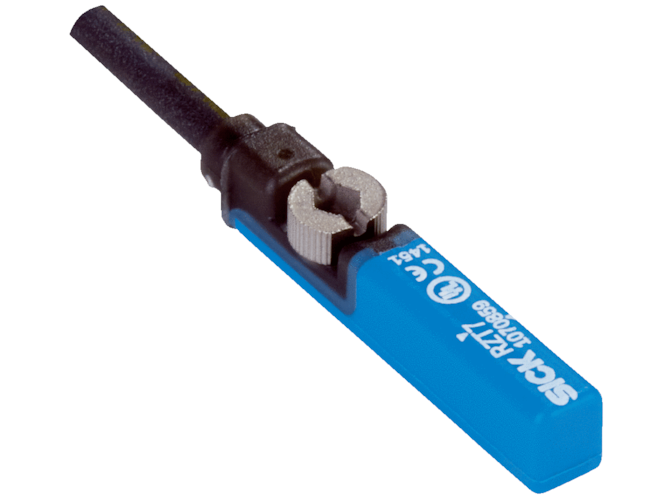

SICK RZT7 Series Cylinder Sensor

Reed switching output, NC / NO function, overrun distance of 10mm. 5 to 230 V AC/DC voltage ranges. Extended operating temperature.

This model has 29 variants.
Part Number
  • RZT7 Series
Highlights...

Features

  • Switching output: Reed
  • Output function: NO, NC, NC/NO
  • Overrun distance: 10mm
  • Wiring: AC/DC 2-, 3-wire
  • LED output indicator
  • Housing length: 29.5mm / 32.5mm
  • Supply voltage: up to 230V AC/DC (dependent on model)
  • Quick slot-mount with fixing-screw assembly for T-slot cylinders
  • Additional mounting compatibility with adapters:
    • tie-rod cylinders, round body cylinders, profile cylinders
  • Enclosure rating(s): IP65/67

The SICK RZT7 Series Cylinder Sensor provides reliable piston position detection in pneumatic drives via reed switching output. The sensor is easily installed into standard T-slot cylinders. Retaining ribs on the side of the sensor hold the unit in place within the slot until the fixing screw can be secured. With the aid of an adapter, this series is also compatible with round/tie-rod, and profile cylinders, as well as cylinders with a dovetail groove. Each RZT7 sensor includes an LED output indicator, and comes enclosed in durable housing with an IP65/67 rating.
