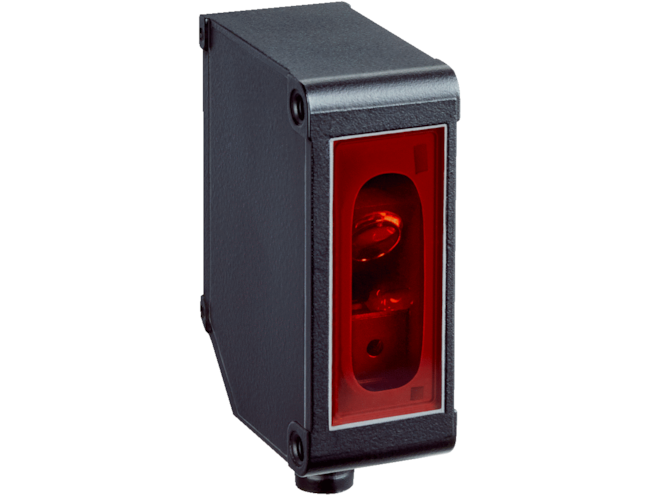

SICK OD Mini Series Distance Sensor

20 to 150mm sensing distance, 35 to 100mm reading field, CMOS receiver, integrated amplifier, 4-20mA analog output, RS-485 and PROFIBUS DP.

This model has 35 variants.
Part Number
  • OD Mini Series
Highlights...

Features

  • 20 to 150mm sensing distance
  • 35 to 100mm reading field
  • –10 to 50 °C operating temperature
  • CMOS receiver
  • Integrated amplifier
  • 4-20mA analog output
  • RS-485 and PROFIBUS DP
  • IP67

The SICK OD Mini Series Distance Sensor provides simple, precise, and economic solutions for measuring tasks. the OD Mini displacement measurement sensors are impressive with their compact and rugged housing, which is available in a lightweight aluminum or a rugged stainless steel. These sensors are equipped with the latest CMOS receiver technology for precise measurement, regardless of the brightness and color of the surface material. The integrated amplifier unit enables the OD Mini to work on a stand-alone basis. For complex measurement tasks up to two OD Mini Pro sensor heads can be connected to one OD Mini evaluation unit and calculate together. The OD Mini is simple to configure due to its intuitive design and display with four status LEDs. The OD Mini can also be remotely programmed via the external teaching input. The large number of available interfaces also simplifies integration into industrial networks. This ensures the highest possible reliability and precision when solving a wide range of measurement tasks.

Applications

  • Electornics
  • Solar
  • Automotive
  • Machine tools
  • Precise positioning
  • Quality Control of manufacturing tolerances
  • Robot positioning by grippers in closed control circuit
