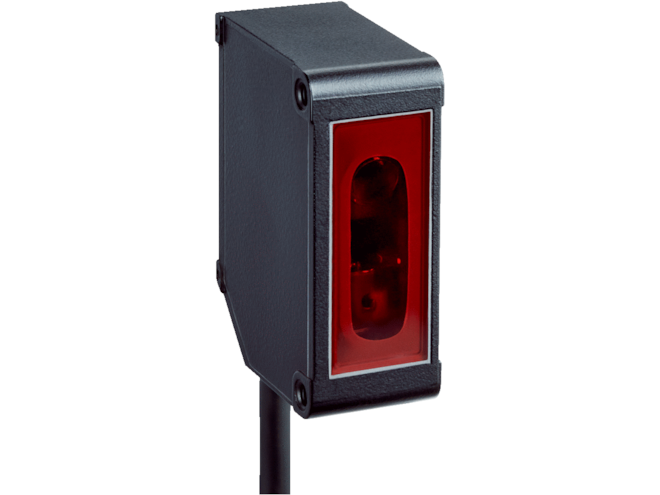

Sick OD1-B100C50A15 Distance Sensor

View other configurations.

$1,842.00
Part Numbers
  • OD1-B100C50A15
  • 6054087
Highlights...

Features

  • 50 mm to 150 mm measuring range
  • Serial, PROFIBUS DP communication interface
  • Current output type of analog output
  • 700 µm x 600 µm (100 mm) typ. light spot size (distance)
  • Metal housing material
  • 1 laser class
  • Cable with male connector, m12, 5-pin, 30 cm connection type
  • 1 to 3 x pnp/npn, selectable digital output
