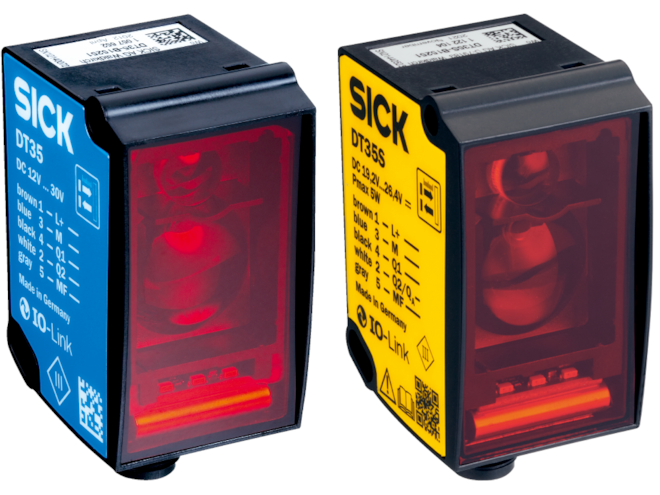

SICK Dx35 Series Laser Distance Sensor

Class 1 / 2 laser sensor with visible or infrared light, with 35m max distance range. IO-Link interface, with analog and switching output, or two switching outputs.

This model has 14 variants.
Part Number
  • Dx35 Series
Highlights...

Features

  • Light source: Class 1/2 laser
    • visible red or infrared light
  • Sensing range(s): up to 35m
  • Response time(s): dependent on type, as low as 4ms
  • Switching output(s): NPN/PNP
  • Resolution: 0.1 mm / 1 mm (dependent on model)
  • Communication interface: IO-Link
  • Analog output: 4 to 20mA, 0 to 10V (dependent on type)
  • Ambient temperature range: –30 to 55°C
  • IP65/67-rated enclosure
  • DT35S models certified to ISO 13849 (PL b) and IEC 62998 (PC B)

The SICK Dx35 Series Laser Distance Sensor is built around a class 1 or 2 laser, utilizing visible red of infrared light, with a sensing range of up to 35m. This design incorporates HDDM technology for highly reliable and accurate detection capabilities across the entire color spectrum, while also including high technology that ensures accurate detection of  extremely dark and reflective objects. This advanced technology is housed in a compact, IP65/67 rated enclosure. Sub-families of this series include specialization for distance measurement on natural objects, the DT35 and DS35, or for reflective tape, the DL35 and DS35. This versatile family of sensors includes an IO-Link interface for remote monitoring and data collection with every unit. The DT and DL configurations  feature an 4 to 20mA / 0 to 10V analog and switching output, whereas the DS and DR models include two switching outputs, for further flexibility to accommodate application needs. Ambient operating temperatures range from –30 to 55°C.
