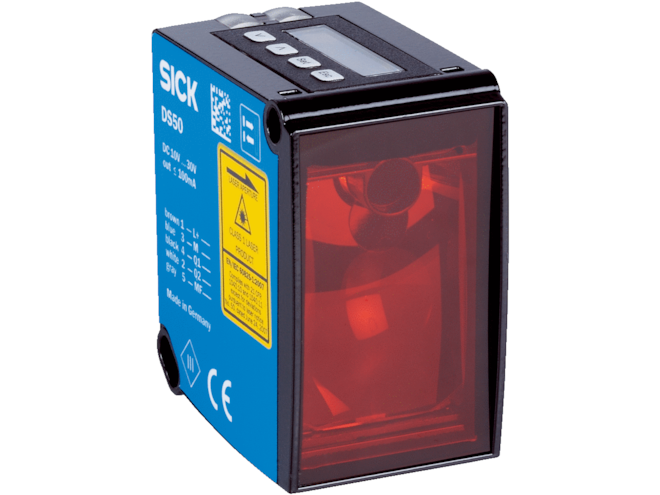

SICK Dx50 Series Laser Distance Sensor

Class 1 / 2 laser sensor with visible red light, with 50m max sensing range. Optional switching, SSI, or 4 to 20mA analog outputs.

This model has 22 variants.
Part Number
  • Dx50 Series
Highlights...

Features

  • Light source: Class 1/2 laser
    • visible red light
  • Sensing range(s): up to 50m
  • Response time(s): as low as 10ms
  • Switching output(s): NPN/PNP
  • Switching frequency: up to 50Hz
  • Resolution: 0.1 mm / 1 mm (dependent on model)
  • Optional communication interface: Serial, SSI
  • Optional analog output: 4 to 20mA, 0 to 10V
  • Ambient temperature range: –30 to 65°C
    • Up to 140°C with 2 cooling plates and protection filter
  • IP65-rated enclosure
    • Zinc die cast construction

The SICK Dx50 Series Laser Distance Sensor is built around a class 1 or 2 laser, utilizing visible red light, with a sensing range of up to 50m. This design incorporates HDDM technology for highly reliable and accurate detection capabilities, with scanning or reflector configurations. This advanced technology is housed in a durable zinc die-cast enclosure that can weather the elements in outdoor environments. This versatile family of sensors is configurable with a switching, analog or serial interface. Ambient operating temperatures range from –30 to 65°C, with extended ranges available with cooling plates and protection filter (contact a Motion World engineer for details).
