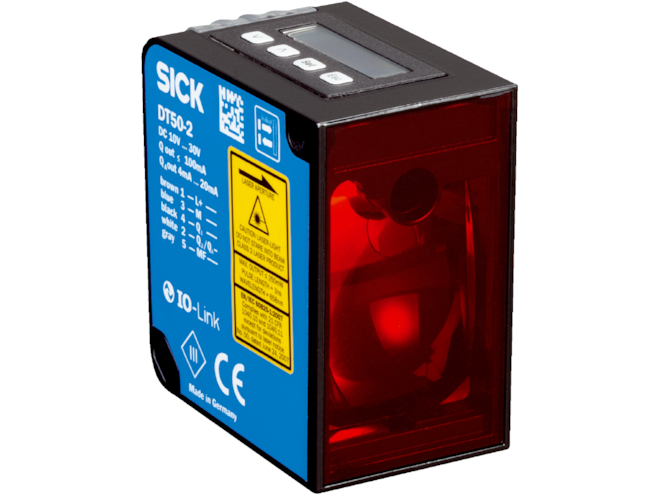

SICK Dx50-2 Series Laser Distance Sensor

Class 1 / 2 laser sensor with visible red light. 30m max sensing range, and up to 3,000 distance values per second. IO-Link interface, with push-pull NPN/PNP and 4 to 20mA analog outputs.

This model has 2 variants.
Part Number
  • Dx50-2 Series
Highlights...

Features

  • Light source: Class 1/2 laser
    • visible red light
  • Sensing range(s): up to 30m
  • Repeatability: 0.5 to 5mm
  • Response time(s): as low as 0.83ms
  • Switching output(s): push-pull NPN/PNP
  • Switching frequency: up to 1000Hz
  • Output rate: up to 3,000/s
  • Resolution: ≥ 0.1 mm
  • Communication interface: IO-Link V1.1, COM3 (230,4 kBaud)
  • Analog output: 4 to 20mA, 0 to 10V
  • Ambient temperature range: –40 to 65°C
    • Up to 140°C with 2 cooling plates and protection filter
  • IP65/67-rated enclosure

The SICK Dx50-2 Series Laser Distance Sensor is built around a class 1 or 2 laser, utilizing visible red light, with a sensing range of up to 30m. This design incorporates HDDM time-of-flight technology for highly reliable and accurate detection capabilities across the full color spectrum, including black objects. This advanced sensor is housed in a durable, IP65/67 enclosure that can weather harsh environments. This product family is highly versatile, with an IO-Link communication interface, as well as digital and analog outputs. The Dx50-2 Series offers up to 3,000 distance values per second for maximum processing speed. The sensing range, output rate and repeatability of the Dx 50-2 offers endless high adaptability to various application needs. Ambient operating temperatures range from –40 to 65°C, with extended ranges available with cooling plates and protection filter (contact a Motion World engineer for details).
