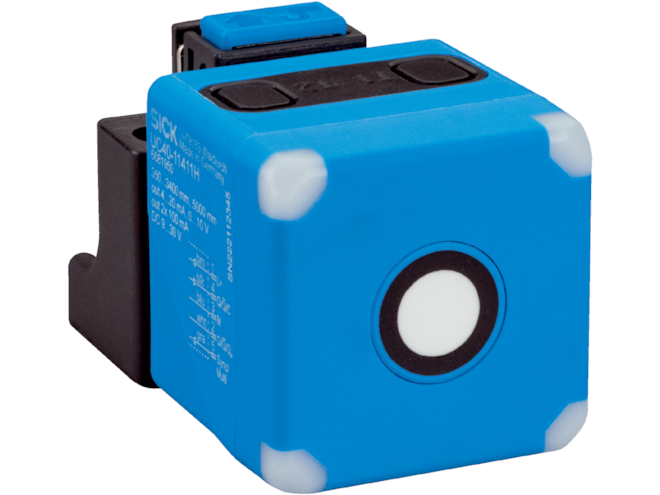

SICK UC40 Series Ultrasonic Distance Sensor

Plug-and-play design with rotatable sensor head. 5m max detection range. –25 to 70°C temperature range. Standard IO-Link interface and push-pull digital output.

This model has 6 variants.
Part Number
  • UC40 Series
Highlights...

Features

  • Time-of-flight measurement
    • ultrasonic pulses
  • Sending axis: straight
  • Sensing range: up to 5m
  • Repeatability: ± 0.15%
  • Switching frequency: 4, 7, 10Hz
  • Response time: 64 to 160ms
  • Output time: 16 to 41.6ms
  • Resolution: ≥ .1mm
  • Communication interface: IO-Link V1.1
  • Digital output: push-pull NPN/PNP
  • 4 LED status indicators
  • Analog output: 4 to 20mA / 0 to 10V (with select models)
  • Ambient temperature range: –25 to 70°C
    • Integrated temperature compensation
  • Miniature, IP65/67-rated enclosure
    • Rotatable sensor head

The SICK UC40 Series Ultrasonic Distance Sensor is a plug and play design with reliable, contact-free detection up to 5m in distance. This is accomplished by utilizing acoustic pulses which reflect off an object, also known as time-of-flight measuring. Ultrasonic technology permits distance measurement across various solid, powdered, and liquid materials, without limitations due to color, transparency, or ambient light. Switching frequencies up to 10Hz are available, dependent on model. Teach-in buttons offer straight forward adjustments, with an IO-Link interface and push-pull NPN/PNP output for increased diagnostic ability and remote monitoring. Select variants offer 4 to 20mA / 0 to 10V analog outputs. All units come standard with a durable IP65 / IP67-rated enclosure, with a rotatable sensor head. These sensors offer quick and easy installation via a push-lock mounting concept. An operating temperature range of –25 to 70°C allows the UC40 sensors to withstand extreme and harsh environments.

Applications

• Distance measurement
• Positioning
• Presence detection
• Collision avoidance
• 2D / 3D area monitoring
• Filling level and bulk level control
