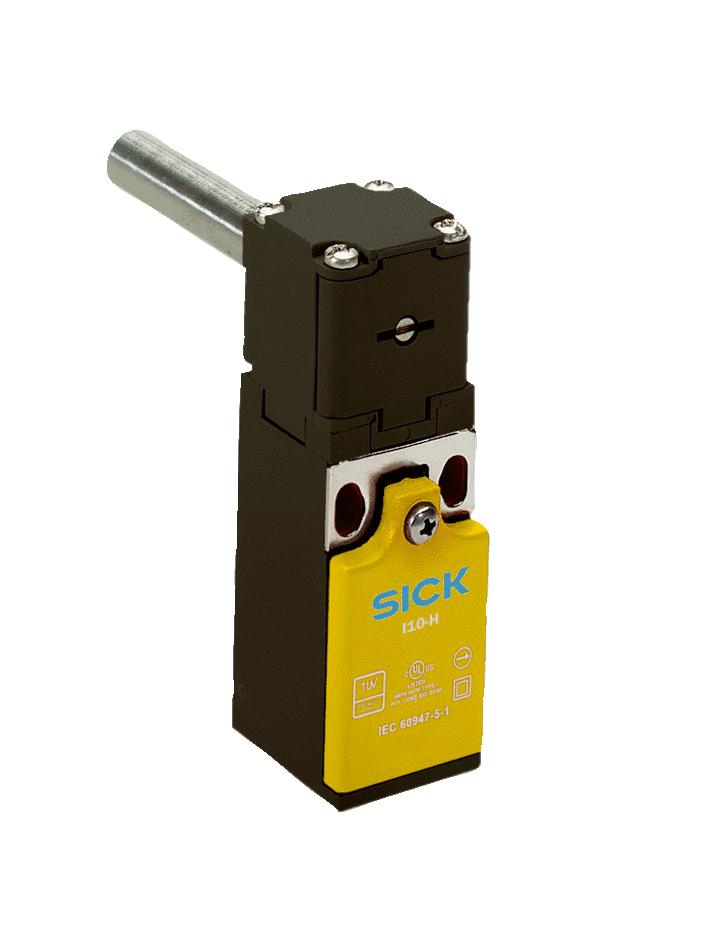

SICK i10H Series Safety Switch

Solid stainless steel shaft with 10mm diameter for direct mount onto door or gate hinge. 1 to 2 N/C contacts and 1 N/O contact. M16 x 1.5 cable entry gland, with IP67-rated, tampering resistant enclosure.

This model has 2 variants.
Part Number
  • i10H Series
Highlights...

Features

  • Slow-action switching element with up to 3 contacts
    • 1 - 2 positive action N/C contacts
    • 1 N/O contacts
  • Stainless steel solid shaft
    • 10mm diameter
  • 1 M16 x 1.5 cable entry gland
  • IP67-rated plastic enclosure

The SICK i10H Series Safety Switch is especially designed for movement detection of rotatable protective devices such as swiveling gates, or hinged doors. The stainless steel shaft of the safety switch permits easy installation directly on the door or gate hinge being monitored. The i10H is designed with reliable protections against tampering, and is enclosed in compact, IP67-rated plastic housing.
