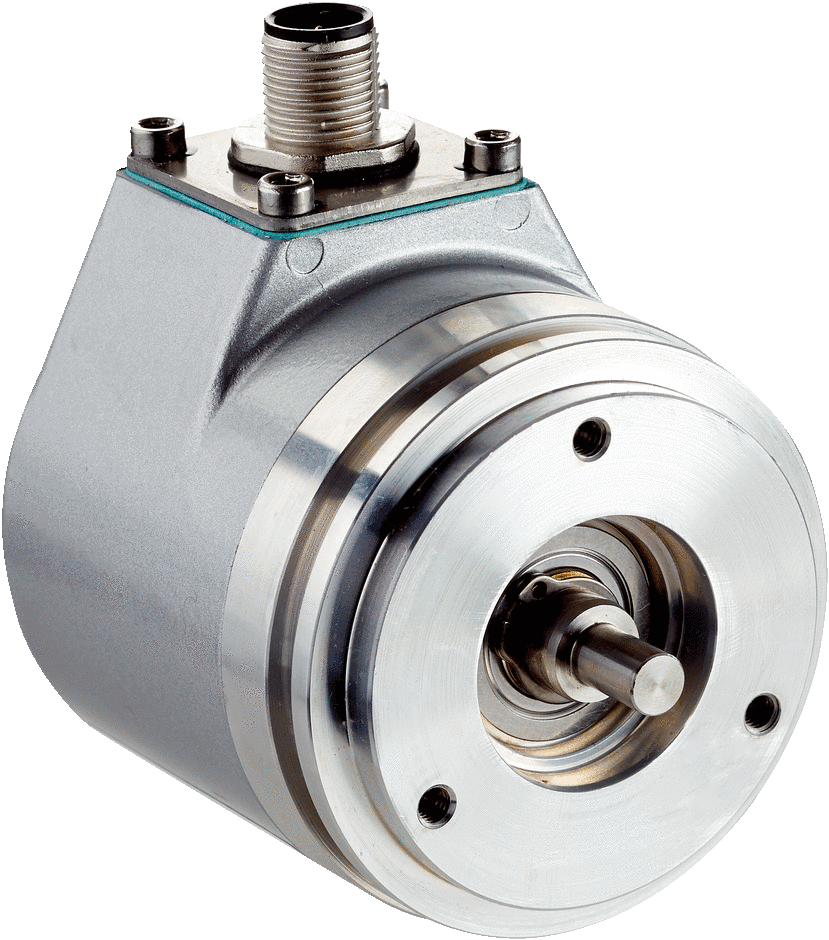

SICK ACM60 Series Encoder

Compact, absolute encoder with multiturn design and current or voltage driven analog interface.

This model has 2 variants.
Part Number
  • ACM60 Series
Highlights...

Features

  • Solid shaft servo flange 6mm x 10mm mechanical design
  • 6-bit with 10485 or 13107 maximum resolution
  • 6mm shaft diameter
  • -30 to 80°C operating temperature
  • IP68 protection class
  • Enclosure protection rating:
    • Shaft side: IP65 (IEC 60529)
    • Housing side: IP67 (IEC 60529)
  • Male connector, m12, 5-pin, radial connection type

The SICK ACM60 Series Encoder provides absolute position measurements and features an analog communication interface with a maximum overall resolution of up to 13107 steps. The compact design of this encoder allows it to be used in confined spaces, facilitating more freedom during machine design and development. Programming the ACM60 measuring range of this device is intuitive and done via the teach-in function on the membrane keyboard. The ACM60 comes in two communication interface variants; the 4 to 20mA current-driven version with 10,485 steps per revolution or the 0 to 10V voltage-driven version with 13,107 steps per revolution.

Applications

  • Automatically guided vehicle systems (AGS)
  • Industrial trucks
  • Commercial vehicles
  • Packaging machinery
  • Logistics applications
  • Mechanical engineering
  • Medical technology
