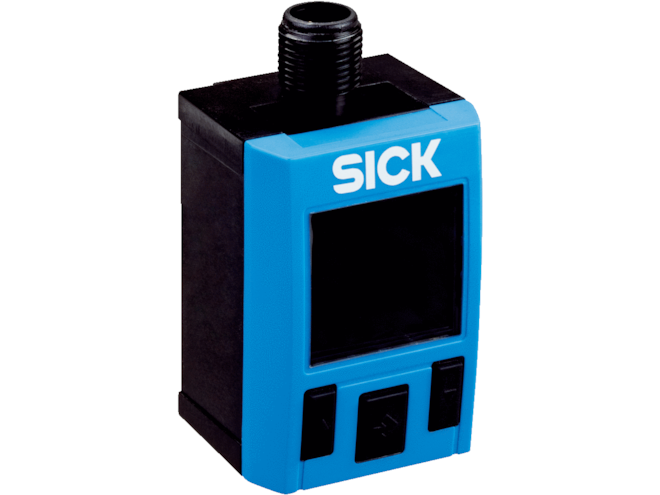

Sick PAC50-BGB Pressure Sensor

Features

• Gauge pressure pressure type
• Bar pressure unit
• –1 bar to 1 bar measuring range
• 5 bar overpressure safety
• ≤ ± 1.5 % of the span accuracy
• 2 x g ¼ process connection
• 0 °c to +60 °c process temperature
• Pnp/npn/push-pull + 4 ma to 20 ma / 0 v to 10 v output signal
• M12 round connector x 1, 4-pin connection type
• Ip65, ip67 enclosure rating
• 17 v DC to 30 v DC supply voltage
