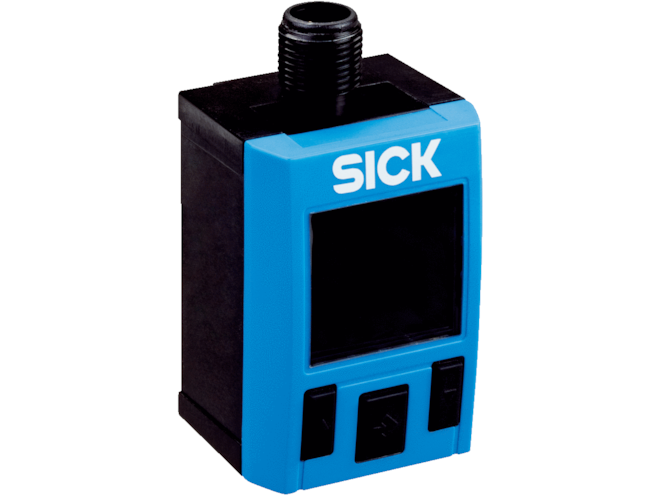

Sick PAC50-ANC Pressure Sensor

Features

• Gauge pressure pressure type
• Bar pressure unit
• –1 bar to 0 bar measuring range
• 5 bar overpressure safety
• ≤ ± 1.5 % of the span accuracy
• ¼" NPT female process connection
• 0 °c to +60 °c process temperature
• 2 x pnp/npn/push-pull + 4 ma to 20 ma / 0 v to 10 v output signal
• Round connector m12 x 1, 5-pin connection type
• Ip65, ip67 enclosure rating
• 17 v DC to 30 v DC supply voltage
