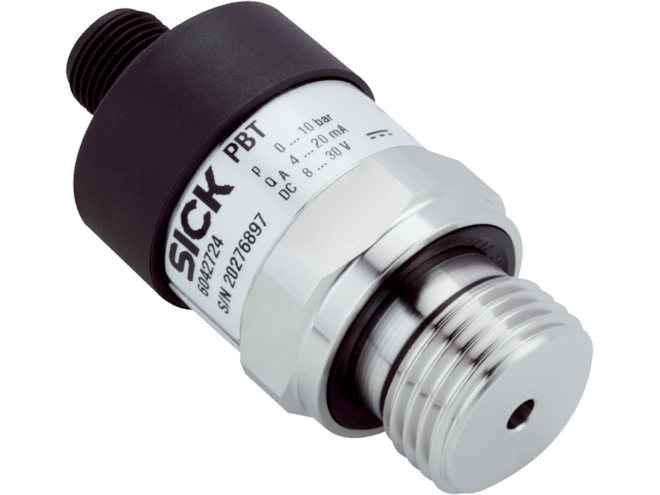

Sick PBT-RB025SGESSSRLR0V Pressure Sensor

Features

• Gauge pressure pressure type
• Bar pressure unit
• 0 bar to 25 bar measuring range
• ≤ ± 1 % of the span accuracy
• ≤ ± 0.5 %, of the span non-linearity
• G ½ b according to EN 837 process connection
• Standard pressure port
• 0 °c to +80 °c process temperature
• Stainless steel seal
• 0.5 v to 4.5 v, ratiometric, 3-conductor output signal
• L-connector acc. to DIN 175301-803 a connection type
• Ip65 enclosure rating
• 8 v DC to 30 v DC supply voltage
• Shock resistance 20 g specialty
