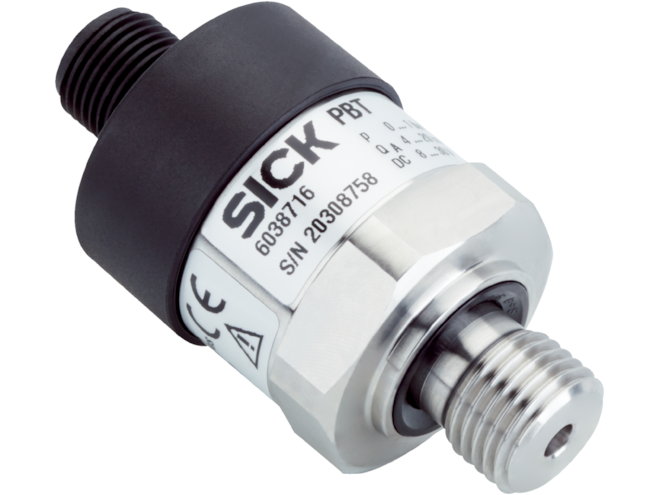

Sick PBT-AP030AN1SE0ALA0H Pressure Sensor

Features

• Absolute pressure pressure type
• Psi pressure unit
• 0 psi to 30 psi measuring range
• ≤ ± 0.5 % of the span accuracy
• ≤ ± 0.25 %, of the span non-linearity
• ¼'' NPT process connection
• Standard pressure port
• –30 °c to +100 °c process temperature
• Without seal seal
• 4 ma to 20 ma, 2-wire output signal
• L-connector acc. to DIN 175301-803 a connection type
• Ip65 enclosure rating
• 8 v DC to 30 v DC supply voltage
• Free from oil and grease, shock resistance 20 g specialty
