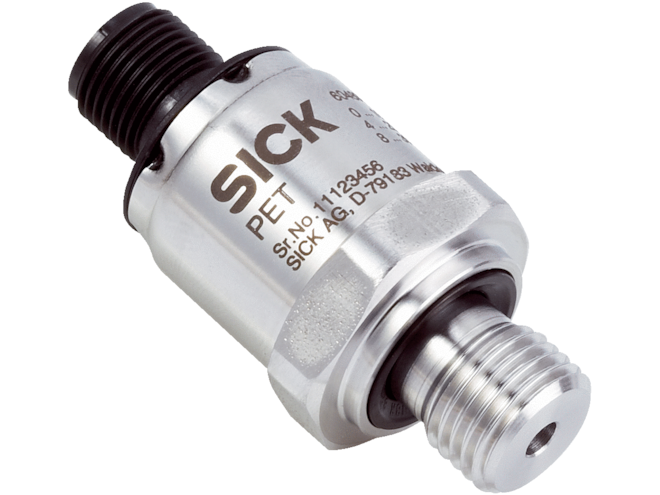

Sick PET-1CB016G1NSAMA Pressure Sensor

Features

• Compound pressure pressure type
• Bar pressure unit
• –1 bar to 15 bar measuring range
• ≤ ± 1.2 % of span (at room temperature) accuracy
• ≤ ± 0.5 %, of span (best fit straight line, bfsl) non-linearity
• G ¼ a process connection
• Standard pressure port
• –30 °c to +100 °c process temperature
• Nbr seal
• 4 ma to 20 ma, 2-wire output signal
• M12 round connector x 1, 4-pin connection type
• Ip67 enclosure rating
• 50 pieces pieces per package
• 8 v DC to 30 v DC supply voltage
