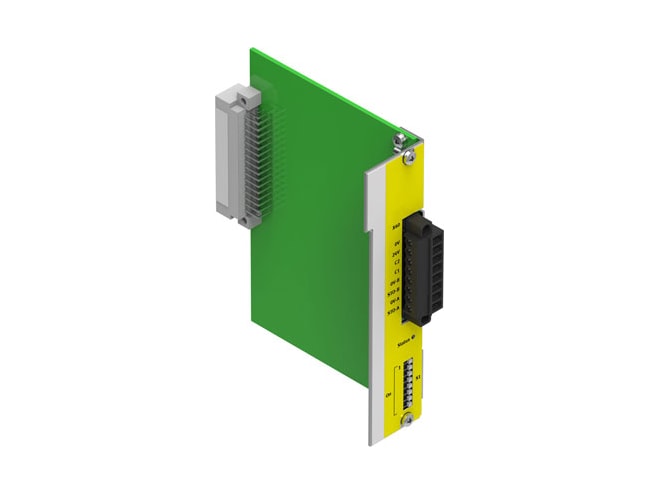

Festo CAMC-G-S1 Safety Module

Features

• 24V nominal voltage for logic power supply dC
• 24V nominal operating voltage dC
• 0.02A nominal current logic power supply
• ± 20 % permissible range for logic voltage
• 0.03A current consumption of logic power supply without clamping brake
• No short circuit current rating
• 0.2A current rating at 40° c
• No fuse protection (short circuit)
• Potential-free signal contact digital output design
• 2 number of digital logic inputs
• Contact closes at STO digital outputs, switching logic
• 112.6 x 87.2 x 28.3 mm dimensions (W x l x h)
• Normal operation (green)/STO (yellow) lED display, product-specific
• Safe torque off (STO) safety function
• 1.27E-10 probability of failure per hour (PFH)
• 2.3E-05 probability of failure on demand (PFD)
• 20JHR proof test interval
• 1 hardware fault tolerance
• 99.2% sFF safe failure fraction
• Product can be used in SRP/CS up to SIL 3 (high demand) certified for safety function to iSO 13849 and iEC 61508 (SIL)
• Safe torque off (STO)/SIL 3/SILCL 3 safety integrity level (SIL)
• Safe Torque Off (STO)/category 4, performance level e performance level (PL)
• 97% diagnostic coverage
• Product can be used in SRP/CS up to category 4, PL e certified for safety functions to iSO 13849 (PL)
• German Technical Control Board (TÜV) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• To EC Machinery Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK regulations for machines cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• German Technical Control Board (TÜV) Rheinland 01/205/5165.02/19 certificate issuing authority
• TÜV Rheinland UK Ltd. 01/205U/5165.00/22 certificate issuing authority
• VDMA24364 zone III lABS (PWIS) conformity
• 5 - 95% relative air humidity
• Non-condensing relative air humidity
• IP20 degree of protection
• In assembled state degree of protection
• 75G product weight
• Plug-in module for CMMP-AS...-M3 type of mounting
• RoHS-compliant note on materials
• Optional mounting position
• Wire end sleeve wire ends
• 0.25I2 connection cross section
• 0.5I2 connection cross section
• Screw terminal electrical connection
• Straight plug electrical connection
• Green/yellow LED display
• None operator controls
• Based on IEC 61131-2 specification logic input
• Galvanically isolated features of logic input
• 19.2V working range of logic input
• 28.8V working range of logic input
• 0.03A max. nominal input current
• 0.3MS debounce time for inputs
• 200MA current rating per output
• 200MA max. current digital logic outputs
• No fuse capacity of outputs
• 0GC ambient temperature to 40GC ambient temperature
• -25GC to 55GC storage temperature
