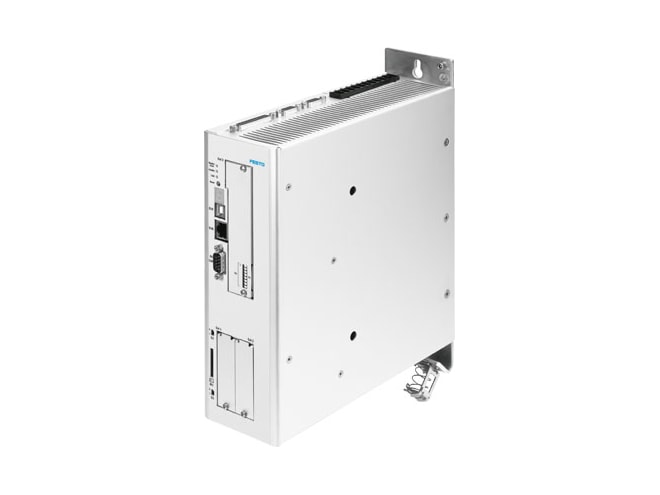

Festo CMMP-AS-C15-11A-P3-M3 Motor Controller

Motor controller series with integration in mechatronic multi-axis modular systems and 15A nominal current. View other configurations.

Festo CMMP-AS-C15-11A-P3-M3 Motor Controller

$3,896.09

Part Numbers

CMMP-AS-C15-11A-P3-M3
3215473

Highlights...

CMMP-AS-C15-11A-P3-M3
By Festo
FREE Shipping
Usually ships in 2-3 weeks

Features

On sub-base type of mounting
Screw-clamped type of mounting
3450G product weight
7-segment display display
RCM trademark approval
C UL us listed (OL) approval
To EU EMC Directive cE mark (see declaration of conformity)
To EC Machinery Directive cE mark (see declaration of conformity)
To EU Low Voltage Directive cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
To UK regulations for machines cE marking (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
To UK regulations for electrical equipment cE marking (see declaration of conformity)
0 - 90% relative air humidity
IP10 degree of protection
IP20 degree of protection
2 pollution degree
RoHS-compliant note on materials
VDMA24364 zone III lABS (PWIS) conformity
3-phase phases of nominal operating voltage
400V nominal operating voltage aC
+/- 10 % permissible voltage fluctuations
50HZ mains frequency
60HZ mains frequency
13A nominal current
Integrated mains filter
560V max. intermediate circuit voltage dC
68OHM brake resistance
8.5KVA pulse power, brake resistance
24V nominal voltage for logic power supply dC
± 20 % permissible range for logic voltage
1A current consumption of logic power supply without clamping brake
3x 0 - 360 V output voltage class aC
15A nominal output current
15A nominal current per phase, effective
30A peak current per phase, effective
5S max. peak current duration
9000D46 controller nominal output
18000D46 maximum output
0HZ output frequency
1000HZ output frequency
Parameterisation and commissioning parameterisation interface
USB parameterisation interface
Ethernet parameterisation interface
CANopen fieldbus link
DeviceNet fieldbus link
EtherCAT fieldbus link
EtherNet/IP fieldbus link
Modbus/TCP fieldbus link
PROFINET fieldbus link
Profibus DP fieldbus link
DS301/DSP402 communication profile
FHPP communication profile
I/O coupling process interfacing
For 256 position sets process interfacing
1MBS max. fieldbus transmission rate
Plugs bus connection
9-pin bus connection
Sub-D bus connection
Resolution 16384 ppr encoder interface output, features
Actual value feedback via encoder signals in speed control mode. encoder interface output, function
Setpoint specification for downstream slave drive. encoder interface output, function
3-phase encoder signals encoder interface input, features
EnDat encoder interface input, features
HIPERFACE encoder interface input, features
RS422 encoder interface input, features
SINCOS encoder interface input, features
Setpoint speed value as encoder signal encoder interface input, function
Specifies the speed of the slave drive in synchronous mode. encoder interface input, function
10 number of digital logic inputs
Galvanically isolated features of logic input
Freely configurable features of logic input
8V working range of logic input
30V working range of logic input
5 number of digital logic outputs 24 v dC
Galvanically isolated features of digital logic outputs
Freely configurable in some cases features of digital logic outputs
100MA max. current digital logic outputs
2 number of analogue setpoint inputs
Differential inputs features of setpoint inputs
Configurable for speed features of setpoint inputs
Configurable for current features of setpoint inputs
± 10 V working range setpoint input
20KOH impedance of setpoint input
2 number of analogue monitor outputs
± 10 V working range of monitor outputs
9BIT resolution of monitor outputs
Short-circuit proof features of monitor outputs
0GC ambient temperature to 40GC ambient temperature
-25GC to 70GC storage temperature

View other configurations.
