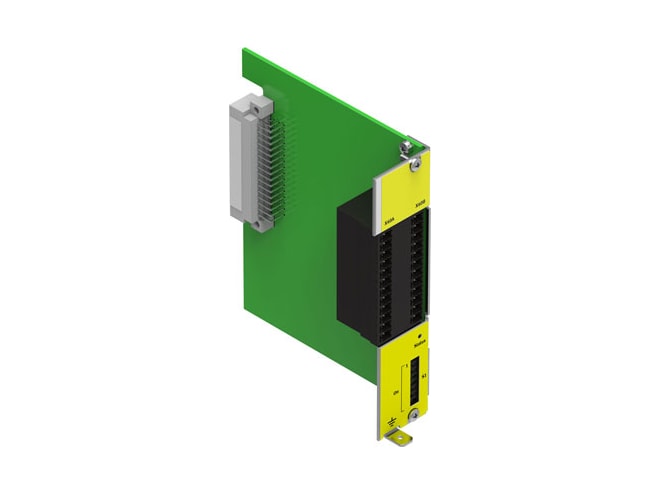

Festo CAMC-G-S3 Safety Module

Features

• 24V nominal voltage for logic power supply dC
• 24V nominal operating voltage dC
• 0.15A nominal current logic power supply
• ± 20 % permissible range for logic voltage
• 0.2A current consumption of logic power supply without clamping brake
• Yes, exception: contact C1/C2 short circuit current rating
• 0.2A current rating at 40° c
• No fuse protection (short circuit)
• Potential-free signal contact digital output design
• 3 safe, 2-channel semiconductor outputs digital output design
• 10 number of digital logic inputs
• Semiconductor outputs: parameterisable PNP (positive switching) 2-channel equivalent/antivalent digital outputs, switching logic
• 112.2 x 99.1 x 28.7 mm dimensions (W x l x h)
• Error (red) lED display, product-specific
• Normal operation (green) lED display, product-specific
• Safe state (yellow) lED display, product-specific
• Safe brake control (SBC) safety function
• Safe Speed Range (SSR) safety function
• Safe Speed Monitor (SSM) safety function
• Safe torque off (STO) safety function
• Safely limited speed (SLS) safety function
• Safe Operating Stop (SOS) safety function
• Safe Stop 1 (SS1) safety function
• Safe Stop 2 (SS2) safety function
• 9.5E-09 probability of failure per hour (PFH)
• 20JHR proof test interval
• 1 hardware fault tolerance
• 99.5% sFF safe failure fraction
• Product can be used in SRP/CS up to SIL 3 (high demand) certified for safety function to iSO 13849 and iEC 61508 (SIL)
• Safe stop 2 (SS2)/SIL 3 safety integrity level (SIL)
• Safe stop 1 (SS1)/SIL 3 safety integrity level (SIL)
• Safe brake control (SBC)/SIL 3 safety integrity level (SIL)
• Safely limited speed (SLS)/SIL 3 safety integrity level (SIL)
• Safe operating stop (SOS)/SIL 3 safety integrity level (SIL)
• Safe speed monitor (SSM)/SIL 3 safety integrity level (SIL)
• Safe Speed Range (SSR)/SIL 3 safety integrity level (SIL)
• Safe torque off (STO)/SIL 3 safety integrity level (SIL)
• Safe brake control (SBC)/category 4, Performance Level e performance level (PL)
• Safely limited speed (SLS)/category 3, performance level e performance level (PL)
• Safe operating stop (SOS)/category 3, performance level e performance level (PL)
• Safe stop 1 (SS1)/category 3, Performance Level e performance level (PL)
• Safe stop 2 (SS2)/category 3, Performance Level e performance level (PL)
• Safe speed monitor (SSM)/category 3, Performance Level e performance level (PL)
• Safe speed range (SSR)/category 3, Performance Level e performance level (PL)
• Safe Torque Off (STO)/category 4, performance level e performance level (PL)
• 97.5% diagnostic coverage
• Product can be used in SRP/CS up to category 4, PL e certified for safety functions to iSO 13849 (PL)
• German Technical Control Board (TÜV) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• To EC Machinery Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK regulations for machines cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• German Technical Control Board (TÜV) Rheinland 01/205/5165.02/19 certificate issuing authority
• TÜV Rheinland UK Ltd. 01/205U/5165.00/22 certificate issuing authority
• VDMA24364 zone III lABS (PWIS) conformity
• 5 - 90% relative air humidity
• Non-condensing relative air humidity
• IP20 degree of protection
• In assembled state degree of protection
• 220G product weight
• Plug-in module for CMMP-AS...-M3 type of mounting
• RoHS-compliant note on materials
• Optional mounting position
• Wire end sleeve wire ends
• 0.25I2 connection cross section
• 0.5I2 connection cross section
• Screw terminal electrical connection
• Straight plug electrical connection
• Green/yellow/red LED display
• DIP switch operator controls
• IEC 61131-2, type 3 specification logic input
• 4 safe, 2-channel inputs Equivalent/antivalent switching Test pulses configurable Function configurable features of logic input
• 6 safe, 1-channel inputs Test pulses configurable features of logic input
• 13V working range of logic input
• 28.8V working range of logic input
• 0.015A max. nominal input current
• 0.3MS debounce time for inputs
• 50MA current rating per output
• 50MA max. current digital logic outputs
• Short-circuit and cross-circuit monitoring fuse capacity of outputs
• 2MS min. cycle time
• Via SafetyTool parameterisation
• 0GC ambient temperature to 40GC ambient temperature
• -25GC to 55GC storage temperature
