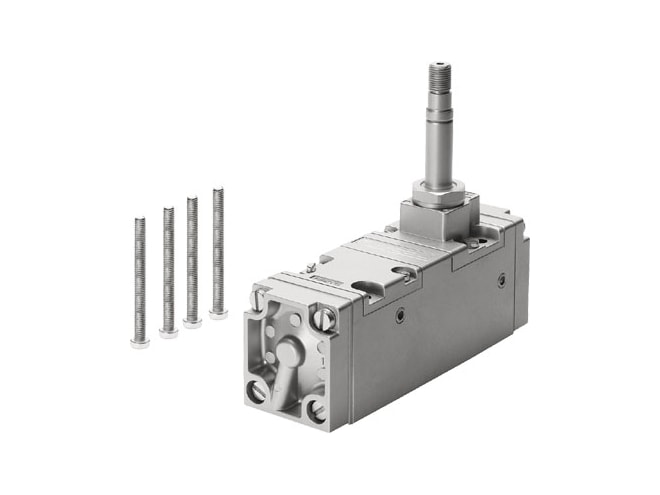

Festo CM-5/2-1/4-CH Solenoid Valve

Features

• 5/2-way, monostable valve function
• Electric type of actuation
• 1400L2 standard nominal flow rate
• Pneumatic spring type of reset
• 6.5MM nominal size
• Optional mounting position
• Non-detenting manual override
• Pilot actuated type of piloting
• 991049 symbol
• 40HZ max. switching frequency
• 28MS switching time on
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• VDMA24364 zone III lABS (PWIS) conformity
• -10GC media temperature
• 60GC media temperature
• On sub-base type of mounting
• G1/8 pilot air port 12
• G1/8 pilot air port 14
• NBR material seals
• Wrought aluminium alloy material housing
• PUR material membrane
• 1.5BAR to 10BAR operating pressure
• Pneumatic connection g1/4 , port 1
• Pneumatic connection g1/4 , port 2
• Pneumatic connection g1/4 , port 3
• Pneumatic connection g1/4 , port 4
• Pneumatic connection g1/4 , port 5
