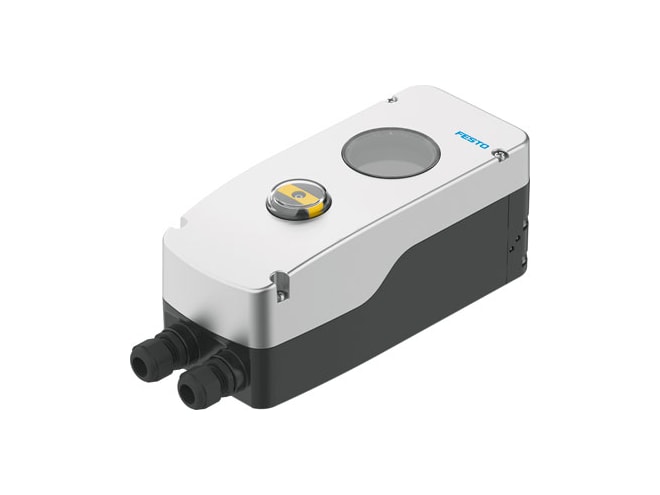

Festo CMSH-S-VDE1-D-A-AL-N14-C1N12-HA Positioner

Name: Festo CMSH-S-VDE1-D-A-AL-N14-C1N12-HA Positioner
Price: 2356.23 USD
Availability: BackOrder

Positioner with HART communication, Double-acting pneumatic rotary, and 1/2in NPT connecting thread. View other configurations.

$2,356.23

Part Numbers

CMSH-S-VDE1-D-A-AL-N14-C1N12-HA
8097421

Highlights...

CMSH-S-VDE1-D-A-AL-N14-C1N12-HA
By Festo
FREE Shipping
Usually ships in 2-3 weeks

Features

Digital, electropneumatic positioner design
Double-acting mode of operation
Safety pneumatic output 2 exhausted design characteristics
Safety pneumatic output 4 pressurised design characteristics
Optional mounting position
With accessories type of mounting
To VDI/VDE 3845 type of mounting
Potentiometer functional principle of measuring system
0DEG sensing range
115DEG sensing range
LCD display, via software 90° rotatable display
Via display and keys setting options
20MS cycle time
<= 2000 m NHN nominal altitude of use
II overvoltage category
0.14MPA operating pressure
0.8MPA operating pressure
1.4BAR operating pressure
8BAR operating pressure
20.3PSI operating pressure
116PSI operating pressure
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
Lubricated operation not possible note on operating and pilot medium
270L2 air flow rate at δp = 6 bar
Yes reverse polarity protection
3KOH connection resistance
80KOH connection resistance
4 - 20 mA with HART digital input, signal range
480 ohm at 20 mA analogue inputs, input impedance
<65 mA analog inputs, overload protection
Yes analogue inputs, electrical isolation
1x to IEC 61131-2, type 3 characteristic for inputs
Yes digital inputs, reverse polarity protection
Yes digital inputs, electrical isolation
33 V digital inputs, overload protection
Analogue input electrical connection 1, function
Digital input electrical connection 1, function
External path/angle sensor electrical connection 1, function
Terminal strip electrical connection 1, connection type
Spring-loaded terminal electrical connection 1, connector system
7 electrical connection 1, number of connections/cores
2x 1/2 NPT cable fitting
30 m for external position sensor max. cable length
Shielded max. cable length
-40GC ambient temperature
80GC ambient temperature
Display: -30 - 80°C note on ambient temperature
1K5 to EN 60721 for storage climatic category
4K3 to EN 60721 for operation climatic category
IP66 degree of protection
IP67 degree of protection
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 shock resistance
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
3 pollution degree
RCM trademark approval
To EU EMC Directive cE mark (see declaration of conformity)
To EU Explosion Protection Directive (ATEX) cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
Aluminium, powder-coated material housing
PC material screen
High-alloy stainless steel material shaft
High-alloy stainless steel material coupling
High-alloy stainless steel material screws
EPDM material seals
NBR material seals
VMQ material seals
VDMA24364 zone III lABS (PWIS) conformity
RoHS-compliant note on materials
2640G product weight
-40GC to 80GC storage temperature
Pneumatic connection 1/4 NPT
