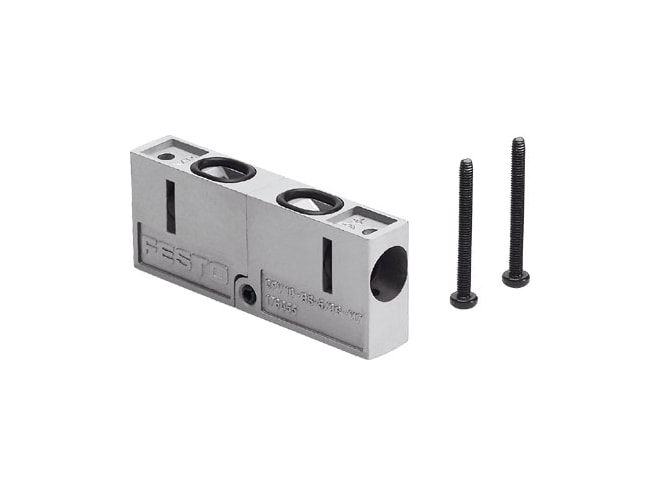

Festo CPV10-BS-5/3G-M7 Valve Kit

$165.52
Part Numbers
  • CPV10-BS-5/3G-M7
  • 176055
Highlights...

Features

  • 5/3 closed valve function
  • 4MM nominal size
  • Optional mounting position
  • 30BAR burst pressure
  • 30MS switching time off
  • 20MS switching time on
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 30 g/11 ms to EN 60068-2-27 shock resistance
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • 23G product weight
  • With through-hole type of mounting
  • RoHS-compliant note on materials
  • NBR material seals
  • Die-cast zinc material housing
  • 2.5BAR to 10BAR operating pressure
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection m7 , port 2
