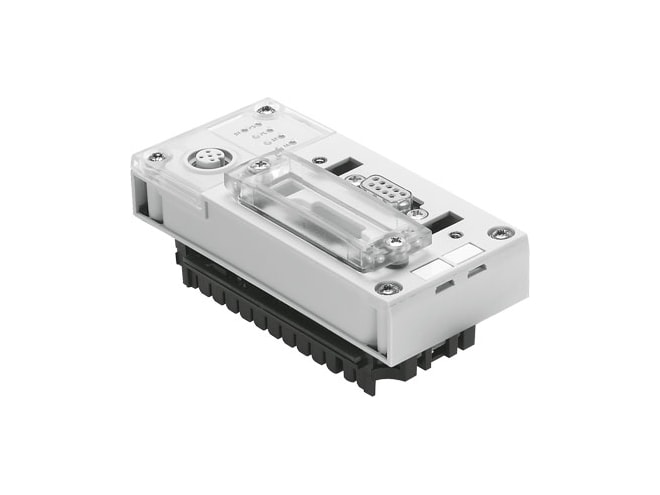

Festo CPX-FB13 Bus Node

Features

• Profibus DP protocol
• (incl. interlinking block) dimensions (W x l x h)
• 50 x 107 x 50 mm dimensions (W x l x h)
• 115G product weight
• IP65 degree of protection
• IP67 degree of protection
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• PA-reinforced material housing
• PC material housing
• M: Modify, parameterisation lED display, product-specific
• PL: Load supply lED display, product-specific
• PS: Electronics supply, sensor supply lED display, product-specific
• SF: System fault lED display, product-specific
• BF: Bus fault lED display, bus-specific
• Channel-oriented and module-oriented diagnostics device-specific diagnostics
• Undervoltage of modules device-specific diagnostics
• Diagnostic memory device-specific diagnostics
• DIL switch operator controls
• 2x M12x1, 5-pin, B-coded field bus interface
• Sub-D socket, 9-pin field bus interface
• Sub-D plug connector, for self-assembly field bus interface
• 64AD max. address volume, inputs
• 64AD max. address volume, outputs
• Diagnostic behaviour parameterisation
• Fail-safe response parameterisation
• Forcing of channels parameterisation
• Signal setup parameterisation
• System parameter parameterisation
• 96 ... 12000 kbit/s baud rate
• GSD file configuration support
• Acyclic data access via "DPV1" additional functions
• Channel-oriented diagnostics via fieldbus additional functions
• Start-up parameterisation in plain text via fieldbus additional functions
• System status can be mapped using process data additional functions
• Additional diagnostic interface for operator units additional functions
• 18V operational voltage range dC
• 30V operational voltage range dC
• 24V nominal operating voltage dC
• Typ. 200 mA intern power consumption nominal operating voltage
• DPV0: Cyclic communication types of communication
• DPV1: Acyclic communication types of communication
• -5GC ambient temperature to 50GC ambient temperature
• -20GC to 70GC storage temperature
