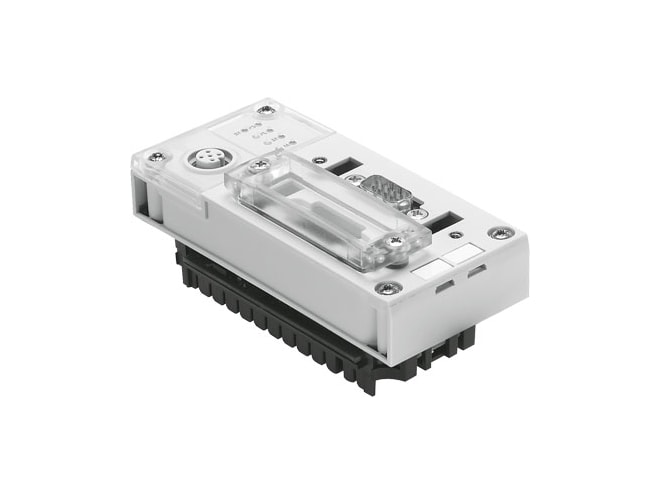

Festo CPX-FB14 Bus Node

Bus node series designed to handle communication between the electrical terminal and CANopen bus node. View other configurations.

$561.25
Part Numbers
  • CPX-FB14
  • 526174
Highlights...

Features

  • CANopen protocol
  • (incl. interlinking block) dimensions (W x l x h)
  • 50 x 107 x 50 mm dimensions (W x l x h)
  • 115G product weight
  • IP65 degree of protection
  • IP67 degree of protection
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • PA-reinforced material housing
  • PC material housing
  • M: Modify, parameterisation lED display, product-specific
  • PL: Load supply lED display, product-specific
  • PS: Electronics supply, sensor supply lED display, product-specific
  • SF: System fault lED display, product-specific
  • IO: I/O status lED display, bus-specific
  • MS: Module status lED display, bus-specific
  • NS: Network status lED display, bus-specific
  • Channel-oriented and module-oriented diagnostics device-specific diagnostics
  • Undervoltage of modules device-specific diagnostics
  • Diagnostic memory device-specific diagnostics
  • DIL switch operator controls
  • 2x M12x1, 5-pin field bus interface
  • Sub-D socket, 9-pin field bus interface
  • Terminal strip, 5-pin field bus interface
  • Sub-D plug connector, for self-assembly field bus interface
  • 32AD max. address volume, inputs
  • 32AD max. address volume, outputs
  • Diagnostic behaviour parameterisation
  • Fail-safe response parameterisation
  • Forcing of channels parameterisation
  • Signal setup parameterisation
  • System parameter parameterisation
  • 125, 250, 500 and 1000 kbit/s baud rate
  • EDS file configuration support
  • Acyclic data access via SDO additional functions
  • Channel-oriented diagnostics via fieldbus additional functions
  • Start-up parameterisation in plain text via fieldbus additional functions
  • System status can be mapped using process data additional functions
  • Additional diagnostic interface for operator units additional functions
  • 18V operational voltage range dC
  • 30V operational voltage range dC
  • 24V nominal operating voltage dC
  • Typ. 200 mA intern power consumption nominal operating voltage
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 70GC storage temperature
