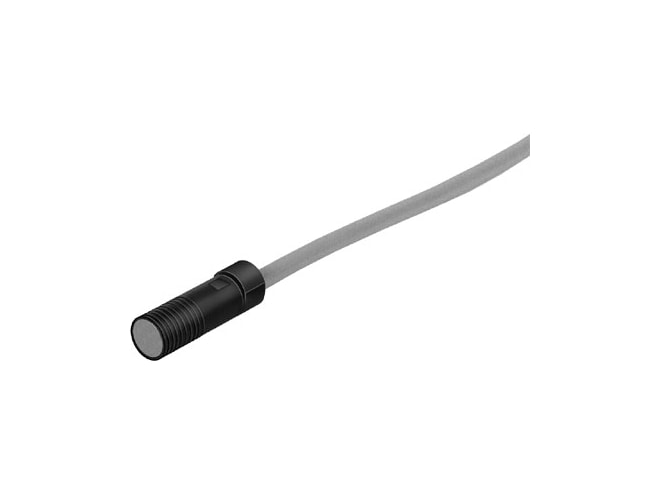

Festo CRSMEO-4-K-LED-24 Proximity Sensor

Name: Festo CRSMEO-4-K-LED-24 Proximity Sensor
Price: 99.96 USD
Availability: InStock

Round design proximity sensor with LED light switching status indication.

$99.96

Part Numbers

CRSMEO-4-K-LED-24
161775

Highlights...

CRSMEO-4-K-LED-24
By Festo
FREE Shipping on orders of $1,000 or more
2 in stock. Additional 4 to 5 days for processing.
Manufacturer has 312 in stock.
Additional 2-3 days to process. Call for expedite options.

Features

Round design
991145 symbol
RCM trademark approval
To EU EMC Directive CE mark (see declaration of conformity)
In accordance with EU RoHS Directive CE mark (see declaration of conformity)
To UK instructions for EMC CE marking (see declaration of conformity)
To UK RoHS instructions CE marking (see declaration of conformity)
RoHS-compliant note on materials
Position measured variable
Magnetic reed measuring principle
-20GC ambient temperature
60GC ambient temperature
0.2MM repetition accuracy
Contacting, bipolar switching output
N/O contact switching element function
0.5MS switch-on time
0.03MS switch-off time
800HZ max. switching frequency
500MA max. output current
10W max. switching capacity DC
Adapted to MZ, MY, ME coils inductive protective circuit
No short circuit current rating
24V rated operational voltage DC
12V operational voltage range DC
30V operational voltage range DC
No reverse polarity protection
Cable electrical connection 1, connection type
Open end electrical connection 1, connector system
3 electrical connection 1, number of connections/cores
In-line connection outlet orientation
2.5M cable length
Grey cable sheath color
TPE-O material cable sheath
With accessories type of mounting
70G product weight
Black housing color
PP material housing
Yellow LED switching status indication
-5GC ambient temperature with moving cable
60GC ambient temperature with moving cable
IP67 degree of protection
VDMA24364-B2-L LABS (PWIS) conformity

The Festo CRSMEO-4-K-LED-24 is a round design proximity sensor. It features a magnetic reed measuring principle and a LED indicator for switching status. The CRSMEO also contains a position measured variable and a contacting, bipolar switching output. The proximity sensor is constructed from a PP material and maintains an IP67 degree of protection.
