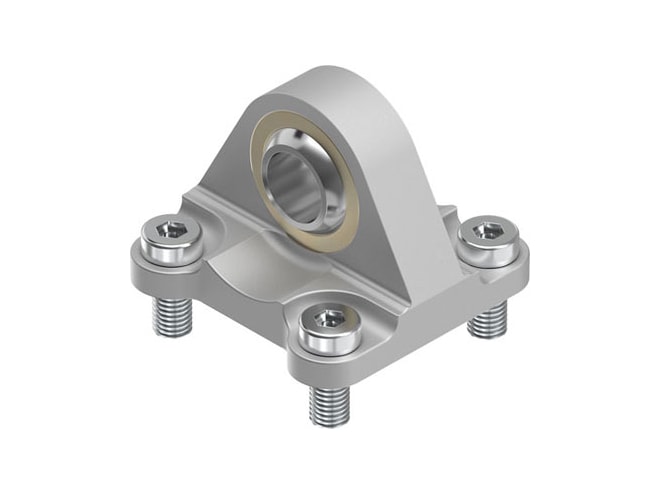

Festo CRSNCS-50 Swivel Flange

Features

• 50 size
• ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) based on standard
• High corrosion protection variants
• 4 - Very high corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• Metals with more than 5% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• 403G product weight
• RoHS-compliant note on materials
• High-alloy stainless steel material mounting
• PTFE material rod end bearing
• Stainless steel material rod end bearing
• High-alloy stainless steel material screws
• -40GC ambient temperature to 150GC ambient temperature
