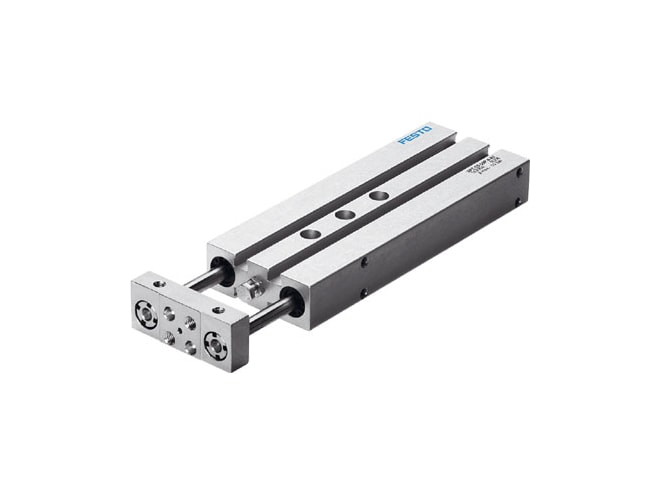

Festo DPZ Series Twin Cylinder

Double-acting with dual piston rods, high load-bearing actuator, and fixed cushioning.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Basic or through piston rods
  • 10 to 32mm piston rod size
  • 10 to 100mm stroke
  • Plain or ball bearing guide
  • Precision stroke adjustment in the end position
  • Grid dimension: 20 and 40mm to suit profile systems

The Festo DPZ Series Twin Cylinder is a high load-bearing actuator with ball guidance designed to provide twice the force in half the space. The DPZ twin cylinder provides 100 to 1,000N thrust at 6 bar operating pressure and, with the large distance between piston rods, it has a high load-bearing capacity of 8 to 105N. This cylinder is double-acting with position detection via a proximity switch and features elastic cushioning rings with plates on both sides. Each cylinder has the option of either a plain-bearing or recirculating ball-bearing guide. A high lateral force and precision version of the DPZ series is also available and features a through piston rod and two end plates.
