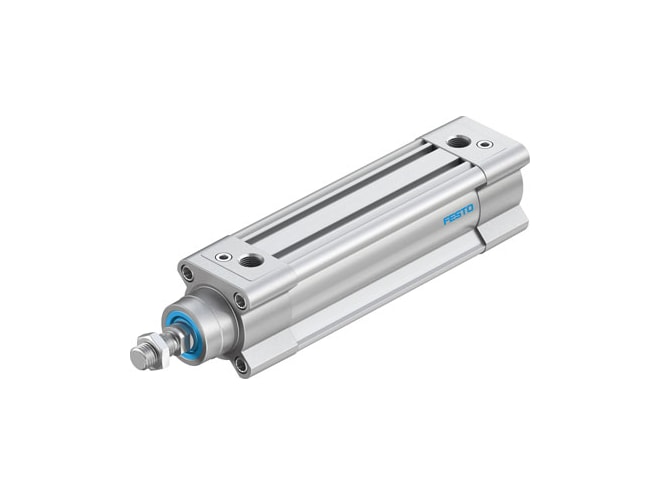

Festo DSBC-40-100-PPVA-N3 ISO Cylinder

Features

• 100MM stroke
• 40 mm piston diameter
• M12x1.25 piston rod thread
• Pneumatic cushioning, adjustable at both ends cushioning
• Optional mounting position
• ISO 15552 conforms to standard
• Male thread piston-rod end
• Piston design
• Piston rod design
• Profile barrel design
• Via proximity switch position detection
• 991235 symbol
• Piston rod at one end variants
• 0.06MPA operating pressure
• 1.2MPA operating pressure
• 0.6BAR operating pressure
• 12BAR operating pressure
• Double-acting mode of operation
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• Class 6 according to ISO 14644-1 cleanroom class
• 0.7J impact energy in end positions
• 19MM cushioning length
• 633N theoretical force at 0.6 mPa (6 bar, 87 psi), return stroke
• 754N theoretical force at 0.6 mPa (6 bar, 87 psi), advance stroke
• 205G moving mass for 0 mm stroke
• 16G additional moving mass per 10 mm stroke
• 740G basic weight for 0 mm stroke
• 37G additional weight per 10 mm stroke
• Either: type of mounting
• Via female thread type of mounting
• With accessories type of mounting
• RoHS-compliant note on materials
• Die-cast aluminium, coated material cover
• TPE-U(PU) material piston seal
• Wrought aluminium alloy material piston
• High-alloy steel material piston rod
• TPE-U(PU) material piston rod wiper
• TPE-U(PU) buffer seal material
• POM cushioning piston material
• Smooth-anodised wrought aluminium alloy material cylinder barrel
• Galvanised steel material nut
• POM material bearing
• Galvanised steel material collar screws
• -20GC ambient temperature to 80GC ambient temperature
• Pneumatic connection g1/4
