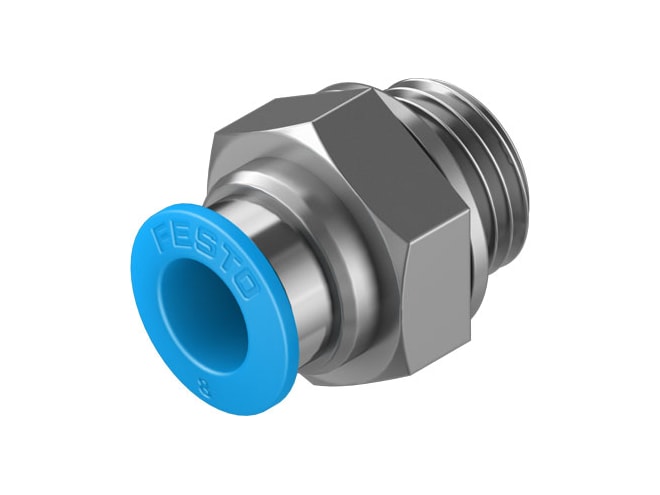

Festo QS-G1/4-8 Push-in Fitting

$29.90

Part Numbers

QS-G1/4-8
186099

Highlights...

QS-G1/4-8
By Festo
FREE Shipping on orders of $1,000 or more
44 in stock. Additional 4 to 5 days for processing.
Manufacturer has 6548 in stock.
Additional 2-3 days to process. Call for expedite options.

Overview

Features

Standard size
7MM nominal size
Sealing ring type of seal on screwed plug
Optional mounting position
Straight design design
10 size of pack
Push-pull principle design
-0.095MPA operating pressure complete temperature range
0.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
6BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
87PSI operating pressure complete temperature range
-0.095MPA temperature-dependent operating pressure
1.4MPA temperature-dependent operating pressure
-0.95BAR temperature-dependent operating pressure
14BAR temperature-dependent operating pressure
-13.775PSI temperature-dependent operating pressure
203PSI temperature-dependent operating pressure
See certificate maritime classification
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Lubricated operation possible note on operating and pilot medium
1 - Low corrosion stress corrosion resistance class cRC
VDMA24364-B1/B2-L lABS (PWIS) conformity
9NM nominal torque
± 20% tolerance for nominal tightening torque
15G product weight
External hexagon, size 17 mm type of mounting
Blue colour of release ring
RoHS-compliant note on materials
Brass, nickel-plated material housing
POM material release ring
NBR material tubing seal
High-alloy stainless steel material tubing clamp component
-10GC ambient temperature to 80GC ambient temperature
Pneumatic connection male thread G1/4 , port 1
Pneumatic connection for tubing outside diameter of 8 mm , port 2
Water operating medium
