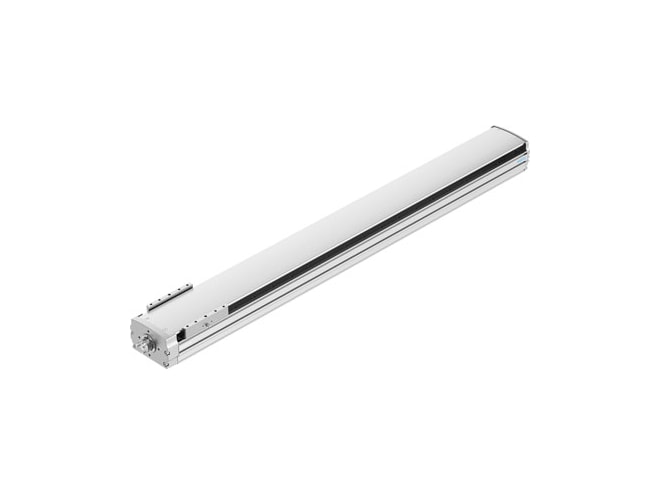

Festo ELGT Series Spindle Axis

Compact with integrated double guide or extra-wide single guide and ball screw drive.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Size 90, 120, or 160
  • 10 or 20mm spindle pitch
  • 50 to 1,400mm stroke options
  • Additional slide available
    • With a stroke value of ≥200
  • Optional anti-reflection coating
  • Less than 1% copper and zinc material
  • Very lightweight and extremely sturdy connectors for precise connection between all axes.

The Festo ELGT Series Spindle Axis with an integrated double guide is optimized for applications in the automotive industry and integration with 2D and 3D cantilever systems in the electronics industry. The ELGT series provides high rigidity and load capacity and is available in three sizes with up to 1,400mm stroke. Size 90 has an extra-wide single guide while sizes 120 and 160 have a double guide on the axis slide. The ELGT series is a modular unit that can be configured with variants including an additional slide or an anti-reflection coating on the outer surface.

Applications

  • 2D and 3D cantilever systems
  • Automotive industry
  • Battery production
  • Controlling and regulating media
  • Gripping, picking, and placing
  • Pressurizing and exhausting
  • Testing, monitoring, and measuring
